| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Automatic Ice Cream Cone Making Machine | Voltage: | 380V |
|---|---|---|---|
| Input Power: | 3.37kw | Net Weight: | 4500kg |
| Raw Material: | Wheat, Wheat Flour | LPG Consumption: | 7-8kg/h |
| Control: | PLC Controller | Automatic: | Full-automatic |
| Feature: | Precision | ||
| Highlight: | Industrial Ice Cream Cone Making Machine,Food Factory Ice Cream Cone Making Machine,4000 pcs/h Ice Cream Cone Making Machine |
||

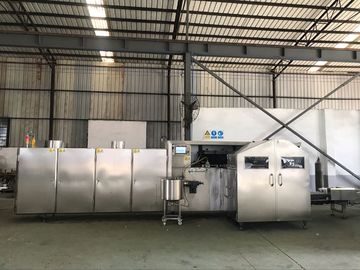

4000 pcs/h Ice Cream Cone Making Machine
Ice Cream Cone Making Machine Introduction
Full automatic filling paste, baking, rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit, sugar rolled cone, egg roll
with changing the different forming devices.
The size of the finished cones is within 135mm long can be customized according to customer's
Requirements, such as angle, width, depth, figure, and thickness.
Ice Cream Cone Making Machine Advantage
Durable innoxious cone mould as per sanitation standard
Temperature adjustable
High-efficient heating element ensures ideal production ability.
Different types of moulds according to your choice.
A relay unit controls baking time.
Ice Cream Cone Making Machine Parameters
|
Name |
SD80-37x2 Ice Cream Cone Making Machine |
||
|
Voltage |
380v |
Product size |
135mm |
|
Total power |
3.37kw |
Output/hour |
3500-4000pcs/h |
|
LPG consumption |
7-8kg/h |
Electrical accessories |
Schneider |
|
Machine dimension |
L8XW2.1XH2M |
PLC controller |
Schneider |
|
Net weight |
4500kg |
Controller |
Schneider |
Ice Cream Cone Making Machine Specifications:
|
Model |
Input power |
Machine dimension |
weight |
LPG consumption |
Baking plate quantity/machine |
Product size(mm) |
Output/hour |
|
SD80-37x2 |
3.37kw |
L8XW2.1XH2M |
4500kg |
7-8kg/h |
37 |
135mm |
3500-4000pcs/h |
|
SD80-37A |
3.37kw |
L6.6xW2.1xH2m |
3800kg |
5-6kg/h |
37 |
165mm |
1800-2000pcs/h |
|
SD80-45x2 |
3.37kw |
L8.6XW2.1XH2M |
5000kg |
10-12kg/h |
45 |
135mm |
4500-5000pcs/h |
|
SD80-45A |
3.37kw |
L8xW2.1xH2m |
4800kg |
7-8kg/h |
45 |
165mm |
2200-2500pcs/h |
|
SD80-53x2 |
3.37kw |
L10.3xW2.1xH1.8m |
5800kg |
10-12kg/h |
53 |
135mm |
5000-6000pcs/h |
|
SD80-53A |
3.37kw |
L8.5xW2.1xH2m |
5300kg |
8-10kg/h |
53 |
165mm |
2800-3200pcs/h |

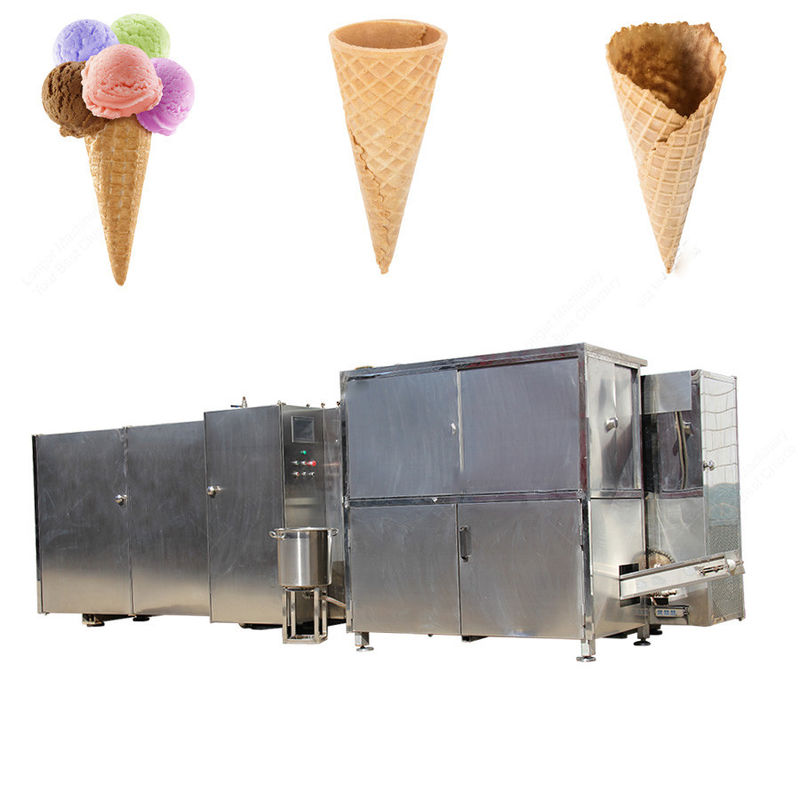

Ice Cream Cone Making Machine Final Products
After Sale Service
♥ Warranty policy one year from shipment
♥ We will send you the replacement after received the broken part
♥ Evaluate the customs rish and choose safest shipping company before shipping.
♥ Follow status up time by time until the goods arrived.
