| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Stainless Steel Sugar Cone Production Line | Raw Material: | Wheat, Wheat Flour |
|---|---|---|---|
| Color: | Silvery | Feature: | High Productivity |
| Material: | Stainless Steel | Key Selling Points: | High Accuracy |
| Application: | Biscuit | Capacity: | 4000-7500pcs/h |
| Power(W): | 4.37KW | Application Fields: | Snack Food Factory, Beverage Factory, Fruit Processing Plant |
| High Light: | Beverage Factory Sugar Cone production line,Ice Cream Sugar Cone Production Line,4.37KW Sugar Cone Making Machine |
||

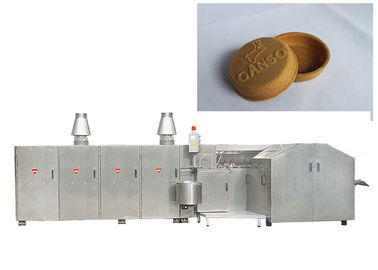

Beverage Factory Ice Cream Sugar Cone Production Line
Product Description
The Sugar Cone production line is fully automatic to make ice cream cone with high quality.The Fully Automatic Sugar Cone Making Machine can make sugar rolled cone, egg roll, round thin biscuit, wafer biscuit and bowl-shaped cup. We can design the different baking machines to make different types of sugar rolled cones as required by clients.
Features:
The machine is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.
The machine is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.
The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
|
Model |
Input power |
Dimension |
weight |
Liquefied petroleum gas(LPG) |
Baking plate quantity/machine |
Product |
Outputhour(pcs/h) |
|
SD80-37x2 |
3.37KW |
7.6x2.1x1.8 |
4500 |
6 |
37 |
Length below 125 |
3500-4000 |
|
SD80-37 |
3.37KW |
7.6x2.1x1.8 |
4500 |
6 |
37 |
Length below 165 |
2500-3000 |
|
SD80-45x2 |
3.37KW |
8.7x2.1x1.8 |
5000 |
7 |
45 |
Length below 125 |
4000-5000 |
|
SD80-45A |
3.37KW |
8.7x2.1x1.8 |
5000 |
7 |
45 |
Length below 165 |
2500-3000 |
|
SD80-53x2 |
3.37KW |
9.8x2.1x1.8 |
5500 |
8 |
53 |
Length below 125 |
5000-6000 |
|
SD80-53A |
3.37KW |
9.8x2.1x1.8 |
5500 |
8 |
53 |
Length below 165 |
3000-3500 |
|
SD80-61x2 |
4.07KW |
11x2.1x1.8 |
6500 |
10 |
61 |
Length below 125 |
6000-7000 |
|
SD80-61A |
4.07KW |
11x2.1x1.8 |
6500 |
10 |
61 |
Length below 165 |
3500-4000 |
|
SD80-69x2 |
4.37KW |
12.5x2.1x1.8 |
7300 |
11 |
69 |
Length below 125 |
7000-7500 |
|
SD80-69A |
4.37KW |
12.5x2.1x1.8 |
7300 |
11 |
69 |
Length below 165 |
4000-4500 |
