| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Automatic: | Full Automatic | Voltage: | 380V |
|---|---|---|---|
| Total Power: | 3.37 Kw | LPG Consumption: | 8-10kg/h |
| Capacity: | 2800-3200pcs/h | Dimension: | L8.5xW2.1xH2m |
| Net Weight: | 5300kg | Application Fields: | Snack Food Factory, Beverage Factory |
| Material: | Stainless Steel | Product Size: | Length Below 165mm |
| High Light: | 3200pcs/H Automatic Ice Cream Cone Machine,Commercial Automatic Ice Cream Cone Making Machine,3200pcs/H Ice Cream Cone Making Machine |
||

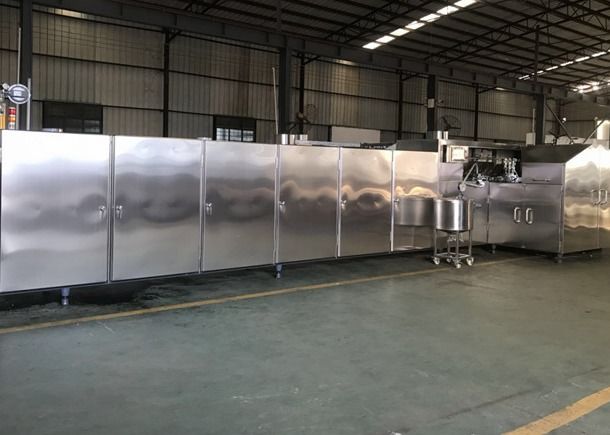

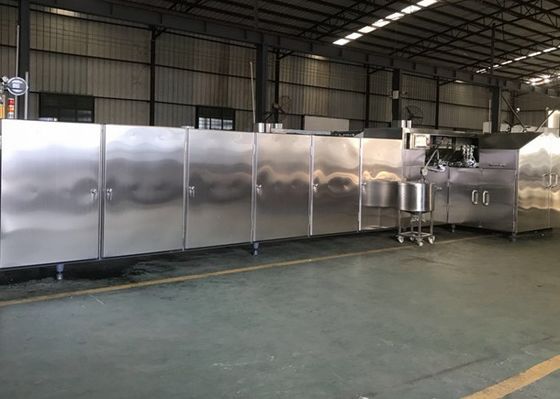

3200pcs/H Commercial Automatic Ice Cream Cone Making Machine
Voltage:380V
Total Power: 3.37kw
LPG consumption: 8-10kg/h
Capacity:2800-3200pcs/h
Dimension:L8.5xW2.1xH2m
Net weight:5300kg
Electrical accessories:Schneider
Controller: Schneider
|
Model |
Input power |
Dimension |
weight |
Liquefied petroleum gas(LPG) |
Baking plate quantity/machine |
Product |
Outputhour(pcs/h) |
|
SD80-37x2 |
3.37W |
7.6x2.1x1.8 |
4500 |
6 |
37 |
Length below 125 |
3500-4000 |
|
SD80-37 |
3.37W |
7.6x2.1x1.8 |
4500 |
6 |
37 |
Length below 165 |
2500-3000 |
|
SD80-45x2 |
3.37W |
8.7x2.1x1.8 |
5000 |
7 |
45 |
Length below 125 |
4000-5000 |
|
SD80-45A |
3.37W |
8.7x2.1x1.8 |
5000 |
7 |
45 |
Length below 165 |
2500-3000 |
|
SD80-53x2 |
3.37W |
9.8x2.1x1.8 |
5500 |
8 |
53 |
Length below 125 |
5000-6000 |
|
SD80-53A |
3.37W |
9.8x2.1x1.8 |
5500 |
8 |
53 |
Length below 165 |
3000-3500 |
|
SD80-61x2 |
4.07W |
11x2.1x1.8 |
6500 |
10 |
61 |
Length below 125 |
6000-7000 |
|
SD80-61A |
4.07W |
11x2.1x1.8 |
6500 |
10 |
61 |
Length below 165 |
3500-4000 |
|
SD80-69x2 |
4.37W |
12.5x2.1x1.8 |
7300 |
11 |
69 |
Length below 125 |
7000-7500 |
|
SD80-69A |
4.37W |
12.5x2.1x1.8 |
7300 |
11 |
69 |
Length below 165 |
4000-4500 |
Working principle:
Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough,then put into the oven to bake. After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.
Standard equipment:

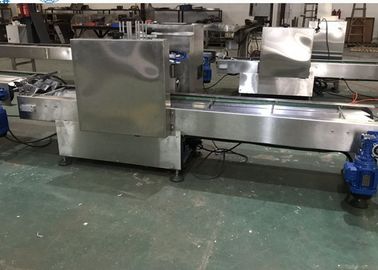

1,conveyor
Voltage:220V
Power:0.75kw
Dimension: 5mx0.6mx0.7m
It is used to deliver the finished products to the assembly shop in a neat line.
2,optional equipment : automatic counting machine
Power: 0.75kw
Dimension: 2mx0.9mx0.7m
It is used to automatically stack the molded products of the paper sleeve into a string, and wait for the box according to the set number. The set value is 1-50/string.
