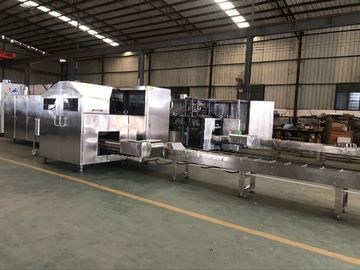

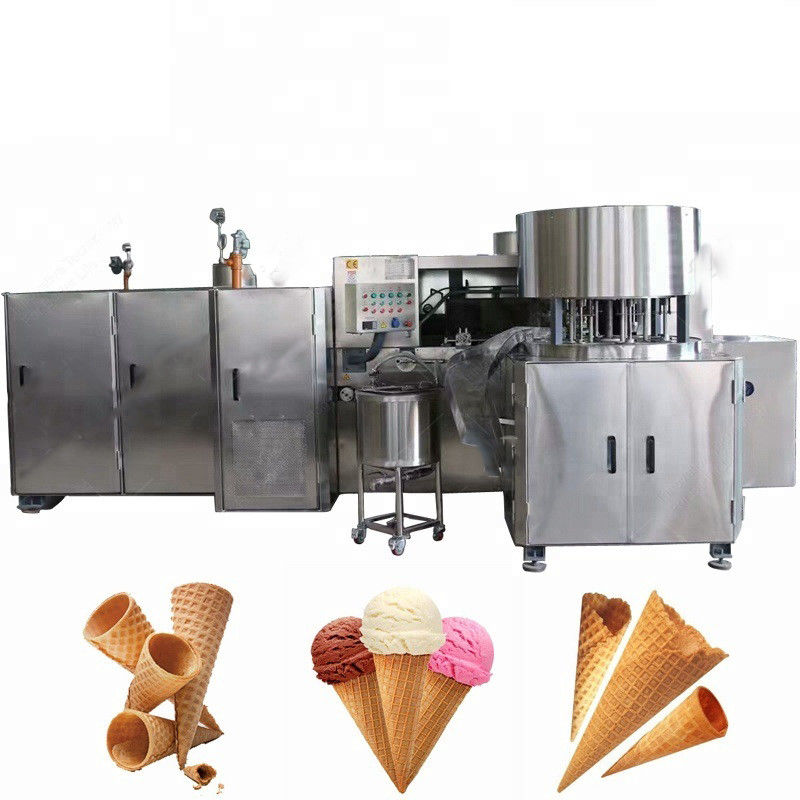

Name: Beverage Factory Ice Cream Cone Production Line
Brand: Beijing Silk Road Enterprise Management Services Co.,LTD
Price: Negotiable USD
Availability: InStock

Home Products Ice Cream Cone Making Machine

Beverage Factory Ice Cream Cone Production Line

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1PS
Price:	Negotiation
Packaging Details:	RAW PACK
Delivery Time:	30-45 days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Sufficient Supply

Contact Now

Detailed Product Description

Name:	Ice Cream Cone Production Line	Dimension:	L8.7xW2.1xH2 M
Voltage:	380V	Input Power:	3.37kw
Capacity:	4000-5000pcs/h	Net Weight:	5000Kg
Raw Material:	Wheat, Wheat Flour	LPG Consumption:	8-10kg/h
Automatic:	Full-automatic	Application Fields:	Snack Food Factory, Beverage Factory
Highlight:	Ice Cream Cone Production Line , Automatic Ice Cream Cone Production Line , 5000 pcs/h Ice Cream Cone Making Machine

beverage factory Ice Cream Cone Production Line

Introduction

full automatic sugar cone making machine is a kind of machine which controlled by PLC,with complete automatization ,high capacity and stable performance.It is very popular all over the world.

Working Principle

The whole machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.

Advantage

Easy Operation
Advanced heating system
Durable innoxious cone mould as per sanitation standard
Temperature adjustable
High-efficient heating element ensures ideal production ability.
Different types of moulds according to your choice.
A relay unit controls baking time.

Parameters

Name	SD80-45x2
Voltage	380v	Product size	120mm
Total power	3.37kw	Output/hour	4000-5000pcs/h
LPG consumption	8-10kg/h	Electrical accessories	Schneider
Machine dimension	L8.7xW2.1xH2 M	PLC controller	Schneider
Net weight	50000kg	Controller	Schneider

Model	Input power	Dimension	weight	Liquefied petroleum gas(LPG) the biggest consumption (kgh)	Baking plate quantity/machine	Product size(mm)	Outputhour(pcs/h)
SD80-37x2	3.37KW	7.6x2.1x1.8	4500	6	37	Length below 125	3500-4000
SD80-37	3.37KW	7.6x2.1x1.8	4500	6	37	Length below 165	2500-3000
SD80-45x2	3.37KW	8.7x2.1x1.8	5000	7	45	Length below 125	4000-5000
SD80-45A	3.37KW	8.7x2.1x1.8	5000	7	45	Length below 165	2500-3000
SD80-53x2	3.37KW	9.8x2.1x1.8	5500	8	53	Length below 125	5000-6000
SD80-53A	3.37KW	9.8x2.1x1.8	5500	8	53	Length below 165	3000-3500
SD80-61x2	4.07KW	11x2.1x1.8	6500	10	61	Length below 125	6000-7000
SD80-61A	4.07KW	11x2.1x1.8	6500	10	61	Length below 165	3500-4000
SD80-69x2	4.37KW	12.5x2.1x1.8	7300	11	69	Length below 125	7000-7500
SD80-69A	4.37KW	12.5x2.1x1.8	7300	11	69	Length below 165	4000-4500

FAQ

1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .
