| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Rolled Sugar Cone Making Machine | Voltage: | 380V |
|---|---|---|---|
| Total Power: | 3.37 Kw | Capacity: | 2200-2500pcs/h |
| Dimension: | L8xW2.1xH2m | Raw Material: | Wheat, Wheat Flour |
| LPG Consumption: | 7-8kg/h | Net Weight: | 4800kg |
| Warranty: | One Year | Product Size:: | Length Below 165mm |
| Application: | Food & Beverage Factory | ||
| Highlight: | industrial Sugar Cone Making Machine,Beverage Factory Sugar Cone Making Machine,2500pcs/h Sugar Cone production line |
||

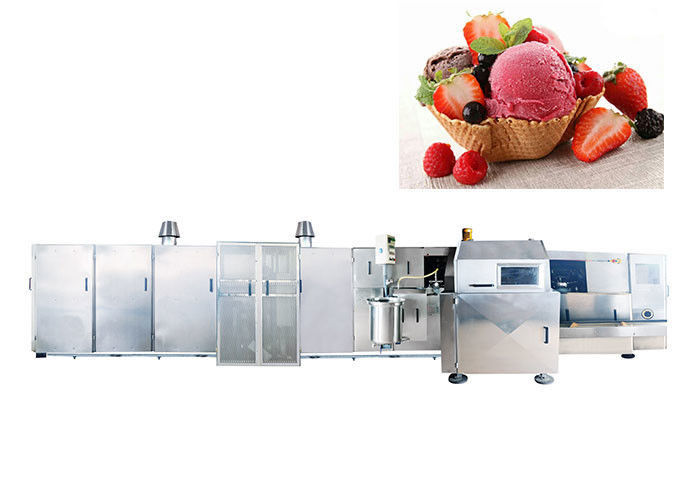

380V 3.37kw Sugar Cone Making Machine
Voltage: 380V
Total Power: 3.37kw
LPG consumption: 7-8kg/h
Capacity:2200-2500pcs/h
Dimension: L8xW2.1xH2m
Net weight: 4800kg
Working principle

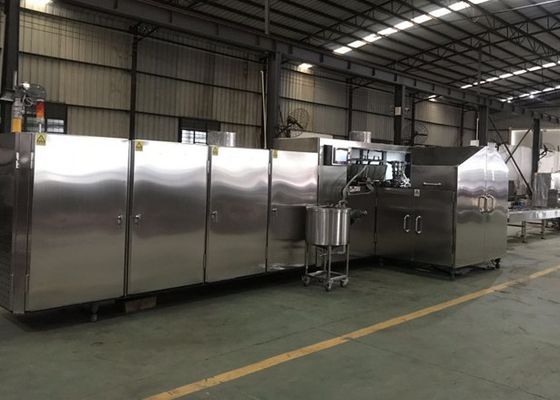

Tunnel type automatic sugar cone making machine is a kind of PLC control, high degree of automation, high production efficiency, stable performance of the production machinery
Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough, then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.
Advantage
1. Easy Operation
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
5. High-efficient heating element ensures ideal production ability.
6. Different types of moulds according to your choice.
7. A relay unit controls baking time.
|
Model |
Input power |
Dimension |
weight |
Liquefied petroleum gas(LPG) |
Baking plate quantity/machine |
Product |
Outputhour(pcs/h) |
|
SD80-37x2 |
3.37W |
7.6x2.1x1.8 |
4500 |
6 |
37 |
Length below 125 |
3500-4000 |
|
SD80-37 |
3.37W |
7.6x2.1x1.8 |
4500 |
6 |
37 |
Length below 165 |
2500-3000 |
|
SD80-45x2 |
3.37W |
8.7x2.1x1.8 |
5000 |
7 |
45 |
Length below 125 |
4000-5000 |
|
SD80-45A |
3.37W |
8.7x2.1x1.8 |
5000 |
7 |
45 |
Length below 165 |
2500-3000 |
|
SD80-53x2 |
3.37W |
9.8x2.1x1.8 |
5500 |
8 |
53 |
Length below 125 |
5000-6000 |
|
SD80-53A |
3.37W |
9.8x2.1x1.8 |
5500 |
8 |
53 |
Length below 165 |
3000-3500 |
|
SD80-61x2 |
4.07W |
11x2.1x1.8 |
6500 |
10 |
61 |
Length below 125 |
6000-7000 |
|
SD80-61A |
4.07W |
11x2.1x1.8 |
6500 |
10 |
61 |
Length below 165 |
3500-4000 |
|
SD80-69x2 |
4.37W |
12.5x2.1x1.8 |
7300 |
11 |
69 |
Length below 125 |
7000-7500 |
|
SD80-69A |
4.37W |
12.5x2.1x1.8 |
7300 |
11 |
69 |
Length below 165 |
4000-4500 |
