| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | 2500pcs/h Ice Cream Cone Production Line | Voltag: | 380V |
|---|---|---|---|
| LPG Consumption: | 7-8kg/h | Net Weight: | 4800kg |
| Capacity: | 2200-2500pcs/h | Dimension: | L8xW2.1xH2m |
| Raw Material: | Wheat, Wheat Flour | Total Power: | 3.37 Kw |
| Automatic: | Full-automatic | Material: | Stainless Steel |
| Product Size:: | Length Below 165mm | ||
| Highlight: | 2200 pcs/h Automatic Ice Cream Cone Machine,Stainless Steel Automatic Ice Cream Cone Machine,3.37 kw Ice Cream Cone Making Machine |
||

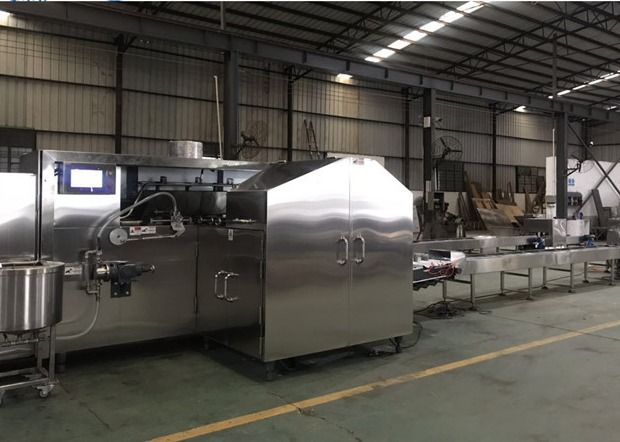

2200pcs/H Automatic Ice Cream Cone Machine
Capacity: 2200-2500pcs/h
Dimension: L8xW2.1xH2m
Voltage: 380V
Total Power: 3.37kw
LPG consumption: 7-8kg/h
Net weight: 4800kg
Electrical accessories: Schneider
Controller: Schneider
Working principle
Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough,then put into the oven to bake. After baking, the paste has forming. Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.
Standard equipment
1, conveyor
Voltage:220V
Power:0.75kw
Dimension: 5mx0.6mx0.7m
It is used to deliver the finished products to the assembly shop in a neat line.
2,Receiver
Standard:L 1.5M x W0.4M x H0.7M
It is used for stacking the product into a string for convenient counting and packing.
|
Model |
Input power |
Machine dimension |
weight |
LPG consumption |
Baking plate quantity/machine |
Product size(mm) |
Output/hour |
|
SD80-37x2 |
3.37kw |
L8XW2.1XH2M |
4500kg |
7-8kg/h |
37 |
135mm |
3500-4000pcs/h |
|
SD80-L37X2 |
3.37kw |
L8XW2.1XH2M |
4500kg |
7-8kg/h |
37 |
135mm |
3500-4000pcs/h |
|
SD80-37A |
3.37kw |
L6.6xW2.1xH2m |
3800kg |
5-6kg/h |
37 |
165mm |
1800-2000pcs/h |
|
SD80-45x2 |
3.37kw |
L8.6XW2.1XH2M |
5000kg |
10-12kg/h |
45 |
135mm |
4500-5000pcs/h |
|
SD80-L45X2 |
3.37kw |
L8.6XW2.1XH2M |
5000kg |
10-12kg/h |
45 |
135mm |
4500-5000pcs/h |
|
SD80-45A |
3.37kw |
L8xW2.1xH2m |
4800kg |
7-8kg/h |
45 |
165mm |
2200-2500pcs/h |
|
SD80-53x2 |
3.37kw |
L10.3xW2.1xH1.8m |
5800kg |
10-12kg/h |
53 |
135mm |
5000-6000pcs/h |
|
SD80-L53X2 |
4.07kw |
L11xW2.1xH2M |
6300kg |
14-16kg/h |
53 |
135mm |
5000-6000pcs/h |
|
SD80-53A |
3.37kw |
L8.5xW2.1xH2m |
5300kg |
8-10kg/h |
53 |
165mm |
2800-3200pcs/h |
|
SD80-61x2 |
4.07kw |
L12.2xW2.1xH2M |
7000kg |
16-18kg/h |
61 |
135mm |
6000-7000pcs/h |
|
SD80-L61X2 |
4.07kw |
L12.2xW2.1xH2M |
7000kg |
16-18kg/h |
61 |
135mm |
6000-7000pcs/h |
|
SD80-61A |
4.37kw |
L9.8xW2.1xH2m |
6000kg |
10-12kg/h |
61 |
165mm |
3400-3800pcs/h |
|
SD80-69x2 |
4.37kw |
L13.5xW2.1xH2M |
7800kg |
18-20kg/h |
69 |
135mm |
7000-7500pcs/h |
|
SD80-L69X2 |
4.37kw |
L13.5xW2.1xH2M |
7800kg |
18-20kg/h |
69 |
135mm |
7000-7500pcs/h |
|
SD80-69A |
4.37kw |
L11xW2.1xH2m |
6800kg |
14-16kg/h |
69 |
165mm |
3800-4200pcs/h |
