Name: Beverage Factory Automatic Ice Cream Cone Machine
Brand: Beijing Silk Road Enterprise Management Services Co.,LTD
Price: Negotiable USD
Availability: InStock

Home Products Automatic Ice Cream Cone Machine

Beverage Factory Automatic Ice Cream Cone Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1PS
Price:	Negotiation
Packaging Details:	RAW PACK
Delivery Time:	30-45 days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Sufficient Supply

Contact Now

Detailed Product Description

Name:	Full Automatic Ice Cream Cone Machine	Capacity:	2200-2500pcs/h
Voltage:	380V	Total Power:	3.37 Kw
Net Weight:	4800kg	LPG Consumption:	7-8kg/h
Raw Material:	Wheat, Wheat Flour	Dimension:	L8xW2.1xH2m
Automatic:	Full Automatic	Application:	Snack Food Factory, Beverage Factory
Highlight:	2500pcs/H Automatic Ice Cream Cone Machine , 2500pcs/H ice cream cone making machine , 3.37 kw Automatic Ice Cream Cone Machine

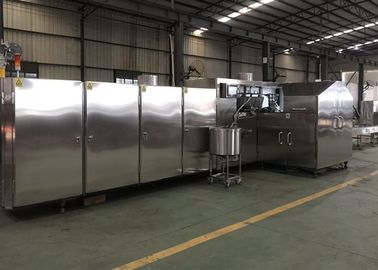

Beverage Factory Automatic Ice Cream Cone Machine

Features

The machine is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.

The machine is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.

The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.

Voltage:380V

Total Power: 3.37kw

LPG consumption: 7-8kg/h

Capacity: 2200-2500pcs/h

Dimension: L8xW2.1xH2m

Net weight: 4800kg

Electrical accessories: Schneider

Controller: Schneider

Model	Input power	Machine dimension	weight	LPG consumption	Baking plate quantity/machine	Product size(mm)	Output/hour
SD80-37x2	3.37kw	L8XW2.1XH2M	4500kg	7-8kg/h	37	135mm	3500-4000pcs/h
SD80-L37X2	3.37kw	L8XW2.1XH2M	4500kg	7-8kg/h	37	135mm	3500-4000pcs/h
SD80-37A	3.37kw	L6.6xW2.1xH2m	3800kg	5-6kg/h	37	165mm	1800-2000pcs/h
SD80-45x2	3.37kw	L8.6XW2.1XH2M	5000kg	10-12kg/h	45	135mm	4500-5000pcs/h
SD80-L45X2	3.37kw	L8.6XW2.1XH2M	5000kg	10-12kg/h	45	135mm	4500-5000pcs/h
SD80-45A	3.37kw	L8xW2.1xH2m	4800kg	7-8kg/h	45	165mm	2200-2500pcs/h
SD80-53x2	3.37kw	L10.3xW2.1xH1.8m	5800kg	10-12kg/h	53	135mm	5000-6000pcs/h
SD80-L53X2	4.07kw	L11xW2.1xH2M	6300kg	14-16kg/h	53	135mm	5000-6000pcs/h
SD80-53A	3.37kw	L8.5xW2.1xH2m	5300kg	8-10kg/h	53	165mm	2800-3200pcs/h
SD80-61x2	4.07kw	L12.2xW2.1xH2M	7000kg	16-18kg/h	61	135mm	6000-7000pcs/h
SD80-L61X2	4.07kw	L12.2xW2.1xH2M	7000kg	16-18kg/h	61	135mm	6000-7000pcs/h
SD80-61A	4.37kw	L9.8xW2.1xH2m	6000kg	10-12kg/h	61	165mm	3400-3800pcs/h
SD80-69x2	4.37kw	L13.5xW2.1xH2M	7800kg	18-20kg/h	69	135mm	7000-7500pcs/h
SD80-L69X2	4.37kw	L13.5xW2.1xH2M	7800kg	18-20kg/h	69	135mm	7000-7500pcs/h
SD80-69A	4.37kw	L11xW2.1xH2m	6800kg	14-16kg/h	69	165mm	3800-4200pcs/h

Working principle

Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough,then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.

Standard equipment

1, conveyor

Beverage Factory Automatic Ice Cream Cone Machine 0

Voltage:220V

Power:0.75kw

Dimension: 5mx0.6mx0.7m

It is used to deliver the finished products to the assembly shop in a neat line.

2, Receiver

Beverage Factory Automatic Ice Cream Cone Machine 1

Standard:L 1.5M x W0.4M x H0.7M

It is used for stacking the product into a string for convenient counting and packing.
