| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Ice Cream Cone Rolling Machine | VoltagE: | 380V |
|---|---|---|---|
| Dimension: | L3.2xW2.7xH2.1M | Input Power: | 1.5kw |
| Gas Consumption: | 4Kg/h (4.2m³/h) | Compressed Air Pressure: | 0.6MPa |
| Net Weight: | 3000Kg | Power Source: | Gas |
| Output/hour：: | 2000-2200 Pcs/hour | Application: | Snack Food Of Cracker Biscuit, Wafer Bread |
| Highlight: | 3000Kg Ice Cream Cone Rolling Machine,Automatic Ice Cream Cone Rolling Machine,2200 pcs/h Ice Cream Cone Rolling Machine |
||

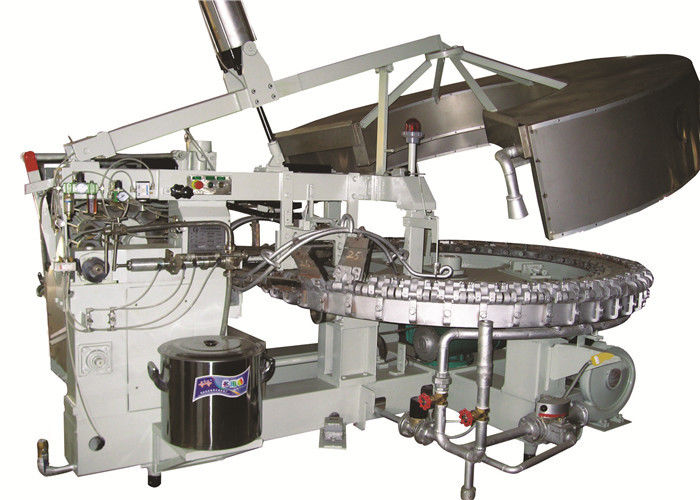

Beverage Factory Ice Cream Cone Rolling Machine
The TT25-40 automatic Ice Cream Cone Rolling Machine is used for rolling sugar cones.It offer cones to the next process to be filled with ice cream.First it dispenses batter on the baking plates to prepare the wafers for shaping,then rolls them up,keep them in shape unload them finally.
|
Model |
TT25-40 |
|
|
Voltage |
380V |
|
|
Total Power |
1.5Kw |
|
|
Gas consumption |
4Kg/h (4.2m³/h) |
|
|
Compressed air pressure |
0.6MPa |
|
|
Weight |
3000Kg |
|
|
Dimension of machine (mm) |
3200*2700*1900 |
|
|
Product dimension (22.5degree) |
Diameter |
46-52mm |
|
Length |
115-130mm |
|
|
Capacity |
2500pieces/h |
|
The main features:
1. Produced by the crisp and delicious products, uniform color.
2. Heating temperature automatically adjusts, uses the thermostat, the temperature control is accurate.
3. Automatic feeding, adjustable amount of material, and the adjustment is simple.
4. Using a special process, non-stick layer heating plate
5. The overall use of stainless steel frame welded pipe, never rust, easy to clean.
6. Mold can be customized to meet different need.
|
Model No. |
|
Gas type |
|||
|
|
TT25 |
TT25-40 |
TT25-36 |
TT25-30 |
|
|
Voltage |
|
380V |
380V |
380V |
380V |
|
Power |
|
1.5Kw |
1.5Kw |
1.5Kw |
1.5Kw |
|
Gas consumption |
|
4Kg/h (4.2m³/h) |
4Kg/h (4.2m³/h) |
5Kg/h (5.5m³/h) |
5Kg/h (5.5m³/h) |
|
compressed air pressure |
|
0.6MPa |
0.6MPa |
0.6MPa |
0.6MPa |
|
Total weight |
|
3000Kg |
3000Kg |
3000Kg |
3000Kg |
|
Dimension(mm) |
|
3200x2700x1900 |
3200x2700x1900 |
3200*2700*1900 |
3200x2700x1900 |
|
Cone size(22.5°) |
Capacity |
2300-2500pcs/h |
2200-2400pcs/h |
2000-2200pcs/h |
1500-2000pcs/h |
|
Cone size(17.5°) |
Capacity |
2500pcs/h |
/ |
/ |
/ |
