| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Type: | Ice Cream Cone Production Line | Voltage: | 380V |
|---|---|---|---|
| Dimension: | L3.2xW2.7xH2.1M | Input Power: | 1.5kw |
| Gas Consumption: | 5kg/h（5.5m³/h） | Compressed Air Pressure: | 0.6MPa |
| Raw Material: | Milk, Wheat, Water, Flour | Application Fields: | Snack Food Factory, Beverage Factory |
| Warranty: | One Year | Power Source: | Gas |
| Output/hour：: | 1500-1800 Pcs/hour | ||
| Highlight: | 1800 pcs/hour Ice Cream Cone Rolling Machine,Commercial Ice Cream Cone Rolling Machine,1800 pcs/h Ice Cream Cone Production Line |
||

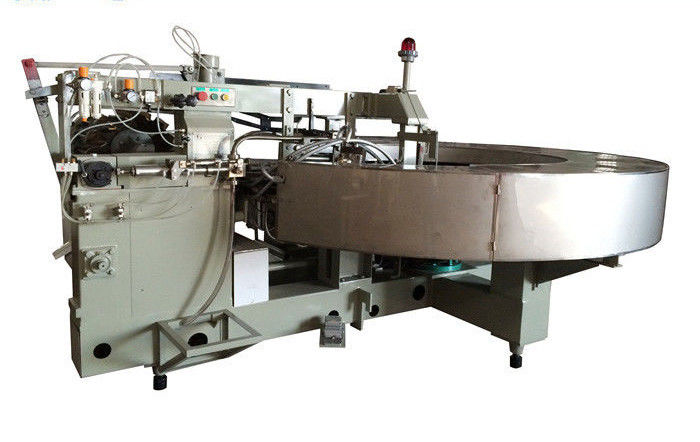

Automatic Ice Cream Cone Rolling Machine
The TT25-30 automatic baking machine is used for rolling sugar cones.It offer cones to the next process to be filled with ice cream.First it dispenses batter on the baking plates to prepare the wafers for shaping,then rolls them up,keep them in shape unload them finally.
| Model | TT25-30 | |
| Voltage | 380V | |
| Total Power | 1.5Kw | |
| Gas consumption | 4Kg/h (4.2m³/h) | |
| Compressed air pressure | 0.6MPa | |
| Weight | 3000Kg | |
| Dimension of machine (mm) | 3200*2700*1900 | |
| Product dimension (22.5degree) | Diameter | 56-68mm |
| Length | 140-165mm | |
| Capacity | 1500-1800pieces/h | |
Product Parameters
Voltage:380V
Input power:1.5kw
Liquefied petroleum gas(LPG) the biggest consumption:4.5kg/h(4.8m³/h)
Compressed air pressure:0.6Mpa
Baking plate quantity/machine:36pcs / machine
Machine dimension:L3.2xW2.7xH2.1M
| Model No. | Gas type | ||||
| TT25 | TT25-40 | TT25-36 | TT25-30 | ||
| Voltage | 380V | 380V | 380V | 380V | |
| Power | 1.5Kw | 1.5Kw | 1.5Kw | 1.5Kw | |
| Gas consumption | 4Kg/h (4.2m³/h) | 4Kg/h (4.2m³/h) | 5Kg/h (5.5m³/h) | 5Kg/h (5.5m³/h) | |
| compressed air pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | |
| Total weight | 3000Kg | 3000Kg | 3000Kg | 3000Kg | |
| Dimension(mm) | 3200x2700x1900 | 3200x2700x1900 | 3200*2700*1900 | 3200x2700x1900 | |
| Cone size(22.5°) | Capacity | 2300-2500pcs/h | 2200-2400pcs/h | 2000-2200pcs/h | 1500-2000pcs/h |
| Cone size(17.5°) | Capacity | 2500pcs/h | / | / | / |
