| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Ice Cream Cone Production Line | Machine Dimension(mm): | 10500L*2400W*1800H |
|---|---|---|---|
| Standard Cones/hour: | 6000 | Gas Consumption(kg)/hour: | 10-11 |
| Feature: | High Productivity | Texture: | Stainless Steel / Doors / Cover |
| Control Type: | Full Automatic | Material: | Stainless Steel |
| After-sales Service Provided: | Field Installation, Commissioning And Training | Usage: | Biscuit |
| Highlight: | industrial Ice Cream Cone Production Line,Beverage Factory Ice Cream Cone Production Line,6000 Pcs/H Ice Cream Cone Biscuit Making Machine |
||

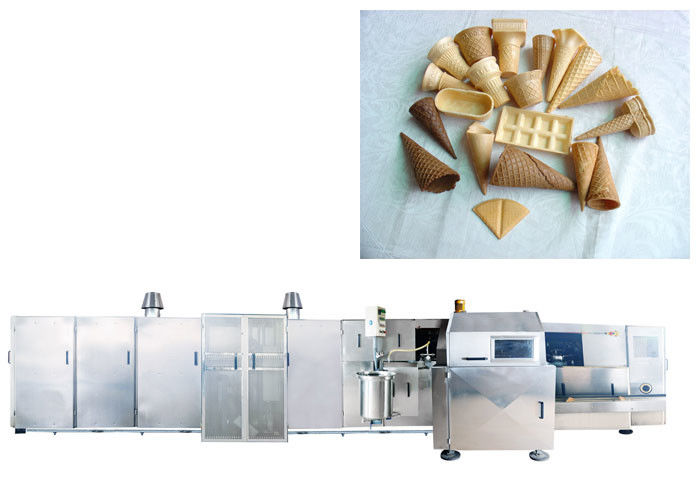

6000 Pcs/H Ice Cream Cone Production Line
The machine is fully automatic to make ice cream sugar cone with high quality.The machine can make sugar rolled cone,egg roll,round thin biscuit,wafer biscuit and bowl-shaped cup.We can design the different baking machines to make different types of sugar rolled cones as required by clients.
Introduction:
The machine is driven by the 3phase power and baking oven is heating with gas(natural gas or liquid gas).The producing ability is very high and it is all automatic from spraying the batter,baking,forming,falling off from molds,conveying products,stacking and counting.
|
Model |
GG37*2-16A |
GG45*2-16A |
GG53*2-16A |
|
Drive motor |
380V 1.5KW |
380V 1.5KW |
380V 2.2KW |
|
Rolling system motor |
380V 0.37KW |
380V 0.37KW |
380V 0.37KW |
|
Air blower |
380V 1.1KW |
380V 1.1KW |
380V 1.6KW |
|
Gas consumption(kg/h) |
5-7 |
6-7 |
8-12 |
|
Producing capacity(pcs/h) |
3500-4000 |
4500-5000 |
5500-6000 |
|
Food-grade conveyor |
5000*460*500 |
5000*460*500 |
5000*460*500 |
|
Automatic counter |
3000*460*400 |
3000*460*400 |
3000*460*400 |
|
Mixer |
190L |
190L |
190L |
|
Machine measurement (m) |
7.05*1.90*1.73 |
8.52*1.90*1.73 |
9.80*1.90*1.73 |
|
Total weight |
4200kgs |
4800kgs |
5300kgs |
Double Layered Panel Door. Hot air escapes from door top cold air move in from door bottom. Air inside door become heat insulator. It reduces heat loss from the oven, saving energy and keeping the panel cool.
Gas system. Auto ignition system is installed. Special design nozzle to give clear blue flames and increase energy efficiency. Universal burner allow LPG, natural gas and some other type fuel.
Batter Tank and Pump System. Double walled to keep batter temperature stable. Steel sieve included. Backflow valve stop batter to release from doser while adjustable doser help control the wafer size.
The machines have characteristics with energy-saving, safety, sanitation, high capacity and easy operation. Meanwhile, we can design and make different models according to the requirements from different customers.
