| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Ice Cream Cone Production Line | Power: | 1.5Kw |
|---|---|---|---|
| Material: | Stainless Steel | Number Of Baking Plate: | 37pcs |
| Voltage: | 220 / 380V | Capacity(pcs/h): | 3500-4000Pcs/h |
| Gas Consumption: | 5-6Kg/h | Feature: | High Productivity |
| Type: | Fully Automatic | Applicable Industries: | Food & Beverage Factory, Sugar Cone Machine |
| Highlight: | 4000 Pcs/h Rolled Sugar Cone Machine,industrial Sugar Cone Making Machine,1.5Kw Rolled Sugar Cone Machine |
||

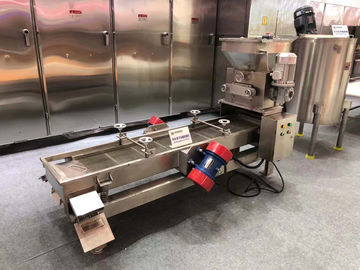

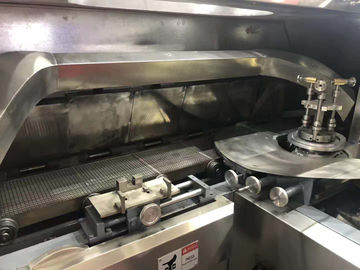

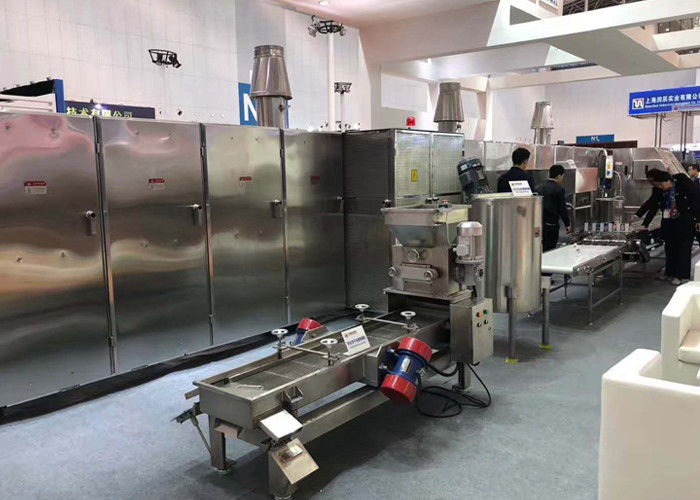

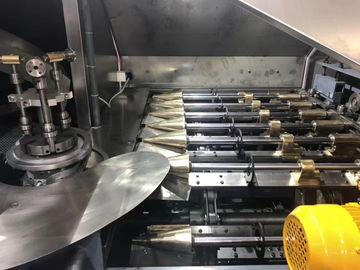

Fully Automatic Rolled Sugar Cone Machine
Product Description
The machine is fully automatic to make ice cream sugar cone with high quality.The machine can make sugar rolled cone,egg roll, round thin biscuit,wafer biscuit and bowl-shaped cup.We can design the different baking machines to make different types of sugar rolled cones as required by clients.
The machine is driven by the 3phase power and baking oven is heating with gas(natural gas or liquid gas).The producing ability is very high and it is all automatic from spraying the batter,baking,forming,falling off from molds,conveying products,stacking and counting.
Automatic Rolled Sugar Cone Machine is fully automatic to make ice cream sugar cone with high quality.Automatic Rolled Sugar Cone Production Line can make sugar rolled cone,egg roll,round thin biscuit,wafer biscuit and bowl-shaped cup.We can design the different baking machines to make different types of sugar rolled cones as required by clients.
This Rolled Sugar Cone Machine can produce different shapes of ice cream cones, just tell us your requirement, we can customize according to your requirement. Compared with other kind of ice cream cone machine, this machine costs less gas consumption. The size and length of cone can be customized, high production capacity, low investment, high profit.
Structure: The spare parts of machine are installed on the strong steel structures. The doors are double for heat insu-lation. All the panels are made with stainless steel.
Application
This product line is used to produce Sugar Cone, size of Sugar Cone can be customzied.
Main Feature
Different production capacity can be customized, high automation, stable performance.
The automatic Rolled Sugar Cone Machine is driven by the 3phase power and the baking oven is heating with gas (nature gas or liquid gas). The producing ability is very high and it is all automatic from spaying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
CBIV series and WBIV series (Baking Plates Size 260mm x 240mm)
2 wafers on 1 baking plate: suitable for suagr cone and waffle basket of length 120mm or less.
|
|
CBIV-45A*/CBIV-45x2A* |
CBIV-63A*/CBIV-63x2A* |
CBIV-101A*/ CBIV-101x2A* |
|
Number of Baking Plates |
45 |
63 |
101 |
|
Standard Cones / hour** |
3800-4000 |
5500-6100 |
9500-10200 |
|
Gas Consumption(kg)/ hour |
5-6 |
9-10 |
11-12 |
|
Machine Dimension(mm) |
6800L x 2400W x 1800H |
900L x 2400W x 1800H |
14000L x 2300W x 2000H |
|
Machine Weight(kg) |
4500 |
6500 |
10000 |
|
Main Motor Specification |
1.5hp; 1.1kw |
2.0hp; 1.5kw |
2.0hp; 1.5kw |
