| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Snack Food Factory Waffle Cone Making Machine | Dimension(L*W*H): | 7050*1900*1730mm |
|---|---|---|---|
| Voltage: | 220V/380V | Capacity: | 5000 Pcs/h |
| Material: | Stainless Steel | Usage: | Machine For Making Ice Cream Cone |
| Raw Material: | Flour | Power(W): | 1.5kw |
| Application Fields: | Snack Food Factory | Advantage: | High Efficiency |
| High Light: | 5000 pcs/h Waffle Cone Making Machine,1600 pc/h waffle cone making machine,5000 Pcs/H Commercial Waffle Cone Machine |
||

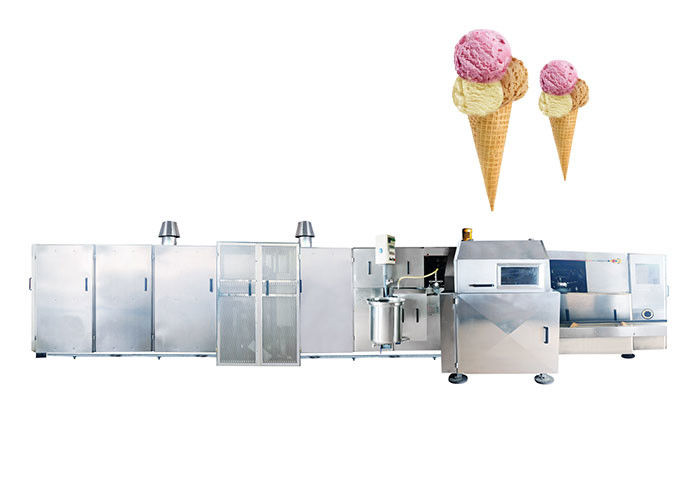

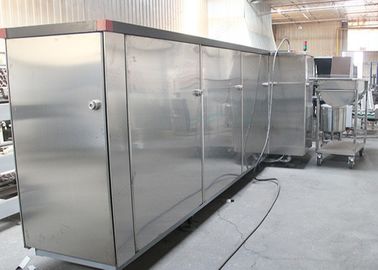

High Output Fully Automatic Waffle Cone Production Line
Product Description
The Waffle Cone Production Line is fully automatic to make ice cream cone with high quality. The Fully Automatic Ice Cream Cone Machine can make sugar rolled cone, egg roll,round thin biscuit,wafer biscuit and bowl-shaped cup.We can design the different baking machines to make different types of sugar rolled cones as required by clients.
Size Information
|
Model |
LG37-16A |
LG45-16A |
LG53-16A |
|
Drive motor |
380v,1.5kw |
380v,1.5kw |
380,2.2kw |
|
Rolling system motor |
380v,0.37kw |
||
|
Air blower |
380V 1.1KW |
380V 1.1KW |
380V 1.6KW |
|
Gas consumption(kg/h) |
43592 |
43623 |
43689 |
|
Producing capacity(pcs/h) |
3500-4000 |
4500-5000 |
5500-6000 |
|
Food-grade conveyor |
5000*460*500 |
5000*460*500 |
5000*460*500 |
|
Automatic counter |
3000*460*400 |
3000*460*400 |
3000*460*400 |
|
Mixer |
190L |
||
|
Machine measurement (m) |
7.05*1.90*1.73 |
8.52*1.90*1.73 |
9.80*1.90*1.73 |
|
Total weight(kg) |
4200 |
4800 |
5300 |
CBIV series and WBIV series (Baking Plates Size: 260mm x 240mm ; suitable for cone length between 100 to 120 mm and waffle basket
|
|
CBI-45A / CBI-45x2A |
CBI-63A / CBI-63x2A |
CBI-97A / CBI-97x2A |
|
Number of Baking Plates |
45 |
63 |
101 |
|
Standard Cones / hour |
4000 |
6000 |
9500-10500 |
|
Gas Consumption(kg) / hour |
5 – 6 |
9 – 10 |
11 – 12 |
|
Machine Dimension(mm) |
6800L x 2400W x 1800H |
9000L x 2400W x 1800H |
To be confirmed |
|
Machine Weight(kg) |
4500 |
6500 |
10000 |
|
Main Motor Specification |
1.5hp ; 1.1kW |
2.0hp ; 1.5kW |
2.0hp ; 1.5kW |
*A means one cone per baking plate while x2A means two cones per baking plate
** Standard cone is 23˚ with cone length 110mm ; standard cone /hour for x2A(two cones per baking plate) only.
Also, production output depends on the quality of cone mix, oven temperature and thickness of wafer.
Please inform us your cone size such as diameter,angle and length so that we can recommend the right model.
