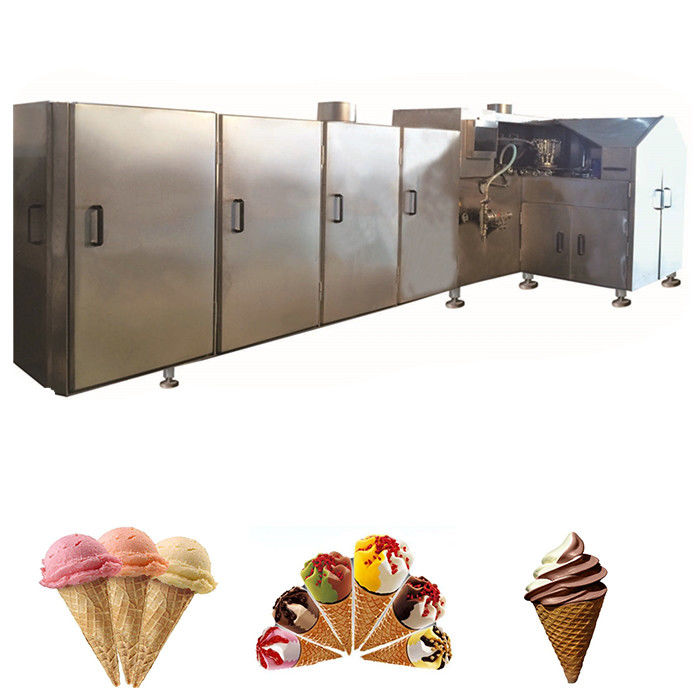

6000 Pcs/H Rolled Sugar Cone Machine

6000 Pcs/H Rolled Sugar Cone Machine​

Product Description

The whole ice cream sugar cone machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.

Features:

The machine is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.

The machine is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.
