| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | 380V Sugar Cone Production Line | Material: | Food Grade Stainless Steel |
|---|---|---|---|
| Voltage: | 380V | Raw Material: | Wheat Flour |
| Dimension(L*W*H): | 9000*1900*1850 Mm | Power: | 1.5kw |
| Type: | Fully Automatic | Weight: | 5100kg |
| Gas Consumption: | 5-7 Kg/h | ||
| Highlight: | Automatic Sugar Cone Production Line,Beverage Factory Sugar Cone Production Line,6000 pcs/h Sugar Cone Making Machine |
||

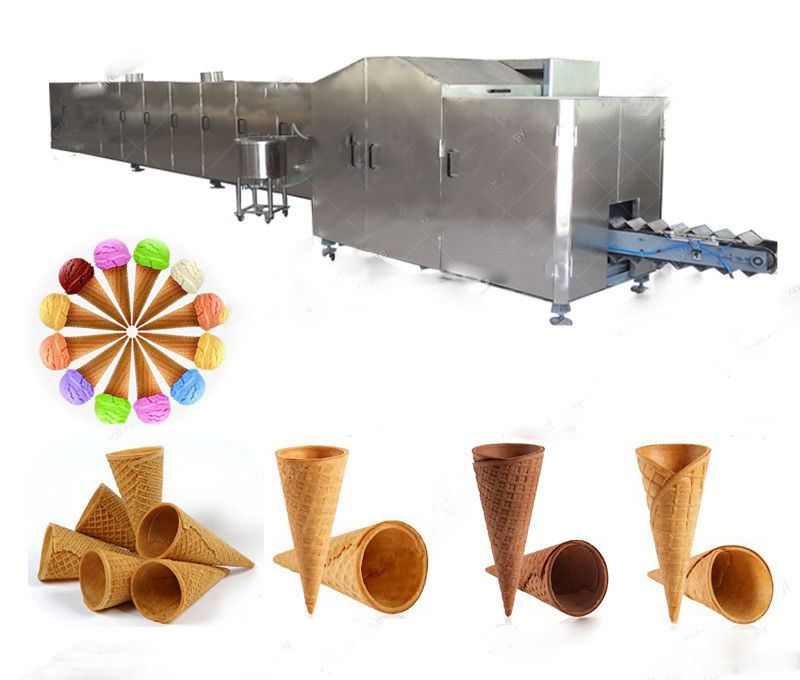

Rolled Sugar Cone Production Line
Features
1. Rolled Sugar Cone Production Line is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
2. Rolled Sugar Cone Production Line is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.
3. Rolled Sugar Cone Production Line is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.
Introduction
1. We produce many kinds of Automatic Rolled Sugar Cone Machine , such as semi-automatic cone machine,automatic cone machines and ice cream cone production line.
2. The machine is driven by the 3phase power and baking oven is heating with gas(natural gas or liquid gas).The producing ability is very high and it is all automatic from spraying the batter, baking, forming,falling off from molds, conveying products, stacking and counting.
| Model | GG37×2-16A | GG45×2-16A | GG53×2-16A |
| Drive motor | 380V 1.5KW | 380V 1.5KW | 380V 2.2KW |
| Rolling system motor | 380V 0.37KW | 380V 0.37KW | 380V 0.37KW |
| Air blower | 380V 1.1KW | 380V 1.1KW | 380V 1.6KW |
| Gas consumption(kg/h) | 5-7 | 6-7 | 8-12 |
| Producing capacity(pcs/h) | 3500-4000 | 4500-5000 | 5500-6000 |
| Food-grade conveyor | 5000*460*500 | 5000*460*500 | 5000*460*500 |
| Automatic counter | 3000*460*400 | 3000*460*400 | 3000*460*400 |
| Mixer | 190L | 190L | 190L |
| Machine measurement (m) | 7.05×1.90×1.73 | 8.52×1.90×1.73 | 9.80×1.90×1.73 |
| Total weight | 4200kgs | 4800kgs | 5300kgs |
