Place of Origin: | CHINA |
Brand Name: | OEM |
Certification: | ISO |
Minimum Order Quantity: | 1PS |
---|---|
Price: | Negotiation |
Packaging Details: | RAW PACK |
Delivery Time: | 30-45 days |
Payment Terms: | T/T, L/C, T/T, Western Union |
Supply Ability: | Sufficient Supply |
Name: | Small Business Wafer Cone Making Machine | Type: | Semi Automatic |
---|---|---|---|
Weight: | 580kg | Function: | Multifunction |
Voltage: | 380v 50Hz | Dimension(L*W*H): | 1080*800*1440mm |
Power(W): | 18kw | Material: | Stainless Steel |
Raw Material: | Flour | ||
High Light: | Small business Wafer Cone Making Machine,3000 pcs/h Wafer Cone Making Machine,3000 pcs/h Waffle Cone Production Line |

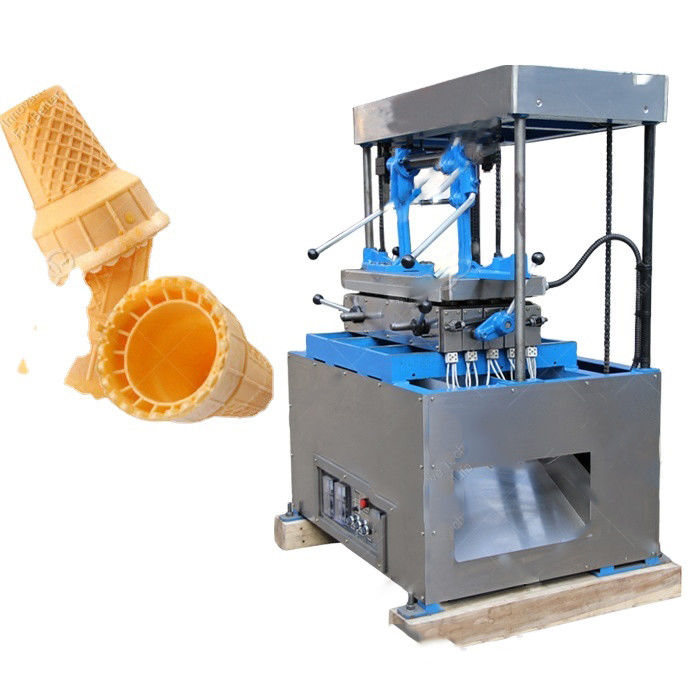

Tea Restaurant Small Business Wafer Cone Making Machine
Introduction
Semi Automatic Wafer Cone Making Machine is the equipment of making sweet ice cream cones which is suitable in tea restaurant, coffee shop, bakery, cake room, drinks shop etc. It is the beneficial tool to start small business.
Characteristics
1. Simple operation, only one person can produce.
2. Multifunctional, can produce different shapes,like corn-shaped, flower-shaped (tulip, petunia, etc.), torch-shaped, horn shaped, flat bottom, and the colors, sizes are customized.
3. Small machine, easy to move.
4. High efficiency, 1-2minutes can finish the baking.
Operation of Wafer Cone Making Machine
1. Brush some oil, like animal oil, vegetable oil, on the surface of molds(upper and lower), which is easier to de-mould.
1. Preheat: Turn on the machine,set the upper and lower mold temperature.
2. The batter is poured into the cavities of the closed lower mold.
3. Operate the upper mold, make the cone cores dipping into the batter.
4. The cones fall into a collecting container below the baking mold.
Technical Parameter
Model |
TZ-2 |
TZ-4 |
TZ- 10 |
TZ- 12 |
TZ-24 |
TZ- 24C |
TZ- 32 |
TZ-32C |
TZ- 40 |
TZ- 60 |
Quantity/ per time |
2 |
4 |
10 |
12 |
24 |
24 |
32 |
32 |
40 |
60 |
Capacity (pcs/h) |
50- 60 |
100- 120 |
250- 300 |
300- 350 |
600- 800 |
600- 800 |
800- 1000 |
800- 1000 |
1200- 1400 |
2400- 3000 |
Time (minutes) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
Power (kw) |
1.5 |
2.4 |
4.5 |
6.5 |
12 |
12 |
15 |
15 |
18 |
21 |
Dimension (mm) |
450* 350 *700 |
530 *430 *650 |
760 *600 *1050 |
800* 700 *880 |
1050* 800* 900 |
730* 800 *1370 |
1200* 800 *900 |
880* 880 *1380 |
1080* 800 *1440 |
1260* 1140 *1640 |
Net Weight (kg) |
45 |
80 |
200 |
180 |
280 |
350 |
320 |
450 |
580 |
850 |
