| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Type: | Ice Cream Cone Manufacturing Machine | Voltage: | 380V |
|---|---|---|---|
| LPG Consumption: | 7-8kg/h | Feature: | High Efficient |
| Net Weight: | 4500kg | Input Power: | 3.37kw |
| Application Fields: | Beverage Factory | Warranty: | One Year |
| High Light: | Beverage Factory Ice Cream Cone Production Line,Beverage Factory Ice Cream Cone Making Machine,4000pcs/h ice cream cone manufacturing machine |
||

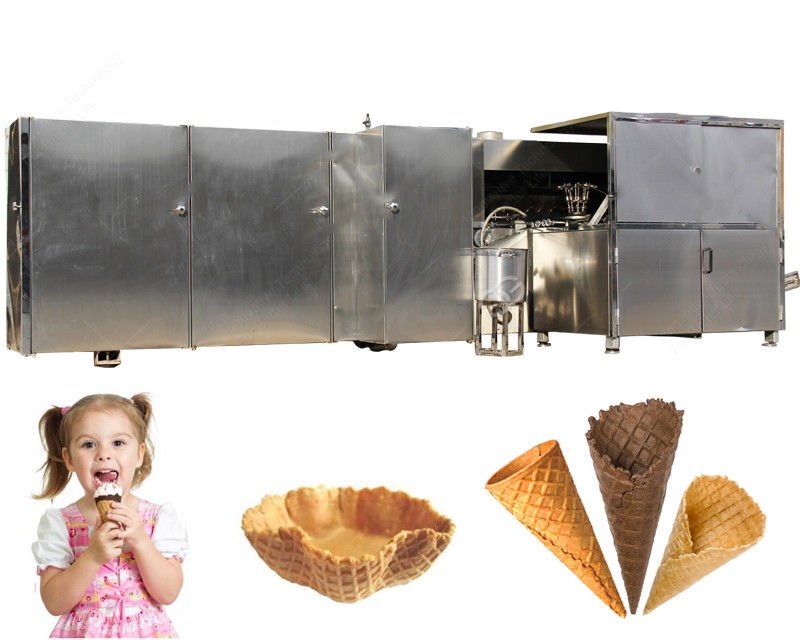

4000pcs/H Stainless Steel Ice Cream Cone Production Line
Ice Cream Cone Making Machine Parameters
| Name | SD80-37x2 | ||
| Voltage | 380v | Product size | 135mm |
| Total power | 3.37kw | Output/hour | 3500-4000pcs/h |
| LPG consumption | 7-8kg/h | Electrical accessories | Schneider |
| Machine dimension | L8XW2.1XH2M | PLC controller | Schneider |
| Net weight | 4500kg | Controller | Schneider |
Ice Cream Cone Making Machine Introduction
We produce many kinds of Automatic Ice Cream Cone Making Machine ,such as semi-automatic cone machine,automatic cone machines and ice cream cone production line.
We also have the wafer ice cream cone machines,such as for different popular shapes in china and all over the worlds.
Welcome to contact us with your cone pictures,design,size and capacity then we can talk more and suggest you the suitable ice cream cone machines.
Ice Cream Cone Making Machine Working Principle
The whole machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.
Ice Cream Cone Making Machine Specifications:
| Model | Input power | Machine dimension | weight | LPG consumption | Baking plate quantity/machine | Product size(mm) | Output/hour |
| SD80-37x2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
| SD80-37A | 3.37kw | L6.6xW2.1xH2m | 3800kg | 5-6kg/h | 37 | 165mm | 1800-2000pcs/h |
| SD80-45x2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
| SD80-45A | 3.37kw | L8xW2.1xH2m | 4800kg | 7-8kg/h | 45 | 165mm | 2200-2500pcs/h |
| SD80-53x2 | 3.37kw | L10.3xW2.1xH1.8m | 5800kg | 10-12kg/h | 53 | 135mm | 5000-6000pcs/h |
| SD80-53A | 3.37kw | L8.5xW2.1xH2m | 5300kg | 8-10kg/h | 53 | 165mm | 2800-3200pcs/h |
| SD80-61x2 | 4.07kw | L12.2xW2.1xH2M | 7000kg | 16-18kg/h | 61 | 135mm | 6000-7000pcs/h |
| SD80-61A | 4.37kw | L9.8xW2.1xH2m | 6000kg | 10-12kg/h | 61 | 165mm | 3400-3800pcs/h |
| SD80-69x2 | 4.37kw | L13.5xW2.1xH2M | 7800kg | 18-20kg/h | 69 | 135mm | 7000-7500pcs/h |
| SD80-69A | 4.37kw | L11xW2.1xH2m | 6800kg | 14-16kg/h | 69 | 165mm | 3800-4200pcs/h |
Ice Cream Cone Making Machine Details
Tunnel Type 3800pcs/H Automatic Ice Cream Cone Machine
3200pcs/H Commercial Automatic Ice Cream Cone Making Machine
Industrial Snack Food Factory Automatic Ice Cream Cone Machine
Full Automatic 5000pcs/H Ice Cream Cone Baking Machine
Automatic Tunnel Type Rolled Sugar Cone Making Machine
