| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Type: | 5000pcs/h Ice Cream Cone Making Machine | Dimension: | L8.7xW2.1xH2 M |
|---|---|---|---|
| Input Power: | 3.37kw | LPG Consumption: | 8-10kg/h |
| Material: | Stainless Steel | Net Weight: | 5000Kg |
| Raw Material: | Wheat, Wheat Flour | Application: | Flat Mouth Sugar Cone |
| High Light: | Automatic ice cream cone production line,Commercial ice cream cone production line,5000pcs/h Ice Cream Cone Making Machine |
||

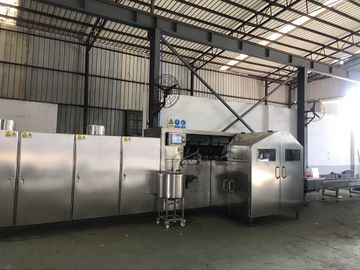

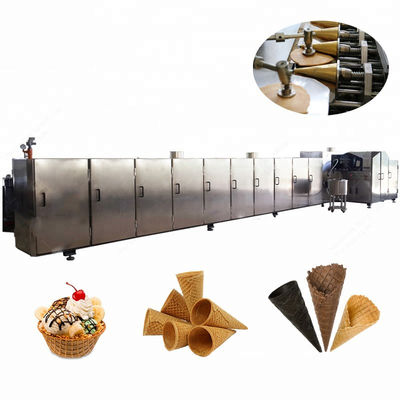

Commercial Automatic Ice Cream Cone Making Machine
Ice Cream Cone Making Machine Features:
1. The machine is suitable for flat mouth sugar cone length less than 120mm.
Cone degree, weight, thickness and pattern spacing customized according to customer demand.
2. The machine is consist of baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.
3. The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display.
4. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
Ice Cream Cone Making Machine Working Principle
The Ice Cream Cone Making Machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.
Ice Cream Cone Making Machine Parameters
| Name | SD80-45x2 Ice Cream Cone Making Machine | ||
| Voltage | 380v | Product size | 120mm |
| Total power | 3.37kw | Output/hour | 4000-5000pcs/h |
| LPG consumption | 8-10kg/h | Electrical accessories | Schneider |
| Machine dimension | L8.7xW2.1xH2 M | PLC controller | Schneider |
| Net weight | 50000kg | Controller | Schneider |
| Model | Input power | Dimension | weight | Liquefied petroleum gas(LPG) the biggest consumption (kgh) |
Baking plate quantity/machine | Product size(mm) |
Outputhour(pcs/h) |
| SD80-37x2 | 3.37KW | 7.6x2.1x1.8 | 4500 | 6 | 37 | Length below 125 | 3500-4000 |
| SD80-37 | 3.37KW | 7.6x2.1x1.8 | 4500 | 6 | 37 | Length below 165 | 2500-3000 |
| SD80-45x2 | 3.37KW | 8.7x2.1x1.8 | 5000 | 7 | 45 | Length below 125 | 4000-5000 |
| SD80-45A | 3.37KW | 8.7x2.1x1.8 | 5000 | 7 | 45 | Length below 165 | 2500-3000 |
| SD80-53x2 | 3.37KW | 9.8x2.1x1.8 | 5500 | 8 | 53 | Length below 125 | 5000-6000 |
| SD80-53A | 3.37KW | 9.8x2.1x1.8 | 5500 | 8 | 53 | Length below 165 | 3000-3500 |
| SD80-61x2 | 4.07KW | 11x2.1x1.8 | 6500 | 10 | 61 | Length below 125 | 6000-7000 |
| SD80-61A | 4.07KW | 11x2.1x1.8 | 6500 | 10 | 61 | Length below 165 | 3500-4000 |
| SD80-69x2 | 4.37KW | 12.5x2.1x1.8 | 7300 | 11 | 69 | Length below 125 | 7000-7500 |
| SD80-69A | 4.37KW | 12.5x2.1x1.8 | 7300 | 11 | 69 | Length below 165 | 4000-4500 |
Ice Cream Cone Making Machine Details
FAQ
1. Ask:What is your guarantee of machine ?
Answer:usually our guarantee is 1 years.
2. Can you arrange your technicians to install the machine for us?
Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.
3. Ask:About the machine voltage or power of machine ?
Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.
4. Ask:how to install the machine ?
Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .
