| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Model Number: | SD80-45A |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | 2500pcs/h Ice Cream Cone Making Machine | LPG Consumption: | 7-8kg/h |
|---|---|---|---|
| Capacity: | 2200-2500pcs/h | Dimension: | L8xW2.1xH2m |
| Voltage: | 380V | Net Weight: | 4800kg |
| Total Power: | 3.37 Kw | Raw Material: | Wheat, Wheat Flour |
| Application: | Commercial, Milk Tea Shop, Beverage Industry | Material: | Stainless Steel |
| Feature: | Energy Saving | Product Size: | Length Below 165mm |
| High Light: | Automatic Ice Cream Cone Production Line,milk tea shop ice cream cone production line,2500pcs/h ice cream cone production line |
||

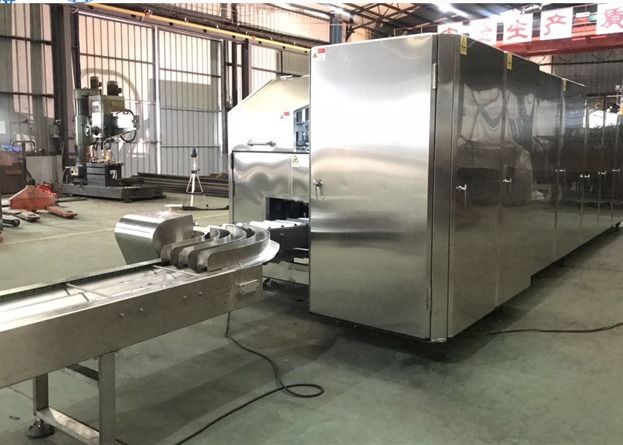

Milk Tea Shop Commercial Ice Cream Cone Production Line
Voltage: 380V
Total Power: 3.37kw
LPG consumption: 7-8kg/h
Capacity: 2200-2500pcs/h
Dimension: L8xW2.1xH2m
Net weight: 4800kg
Electrical accessories: Schneider
Controller: Schneider
Working principle
Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough,then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.
Standard equipment
1, conveyor
Voltage:220V
Power:0.75kw
Dimension: 5mx0.6mx0.7m
It is used to deliver the finished products to the assembly shop in a neat line.
2, Receiver
Standard:L 1.5M x W0.4M x H0.7M
It is used for stacking the product into a string for convenient counting and packing.
Advantage of Ice Cream Cone Baking Machine
1. Easy Operation
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
5. High-efficient heating element ensures ideal production ability.
6. Different types of moulds according to your choice.
7. A relay unit controls baking time.
| Model | Input power | Machine dimension | weight | LPG consumption | Baking plate quantity/machine | Product size(mm) | Output/hour |
| SD80-37x2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
| SD80-L37X2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
| SD80-37A | 3.37kw | L6.6xW2.1xH2m | 3800kg | 5-6kg/h | 37 | 165mm | 1800-2000pcs/h |
| SD80-45x2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
| SD80-L45X2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
| SD80-45A | 3.37kw | L8xW2.1xH2m | 4800kg | 7-8kg/h | 45 | 165mm | 2200-2500pcs/h |
| SD80-53x2 | 3.37kw | L10.3xW2.1xH1.8m | 5800kg | 10-12kg/h | 53 | 135mm | 5000-6000pcs/h |
| SD80-L53X2 | 4.07kw | L11xW2.1xH2M | 6300kg | 14-16kg/h | 53 | 135mm | 5000-6000pcs/h |
| SD80-53A | 3.37kw | L8.5xW2.1xH2m | 5300kg | 8-10kg/h | 53 | 165mm | 2800-3200pcs/h |
| SD80-61x2 | 4.07kw | L12.2xW2.1xH2M | 7000kg | 16-18kg/h | 61 | 135mm | 6000-7000pcs/h |
| SD80-L61X2 | 4.07kw | L12.2xW2.1xH2M | 7000kg | 16-18kg/h | 61 | 135mm | 6000-7000pcs/h |
| SD80-61A | 4.37kw | L9.8xW2.1xH2m | 6000kg | 10-12kg/h | 61 | 165mm | 3400-3800pcs/h |
| SD80-69x2 | 4.37kw | L13.5xW2.1xH2M | 7800kg | 18-20kg/h | 69 | 135mm | 7000-7500pcs/h |
| SD80-L69X2 | 4.37kw | L13.5xW2.1xH2M | 7800kg | 18-20kg/h | 69 | 135mm | 7000-7500pcs/h |
| SD80-69A | 4.37kw | L11xW2.1xH2m | 6800kg | 14-16kg/h | 69 | 165mm | 3800-4200pcs/h |
