| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Fully Automatic Ice Cream Cone Making Machine | Total Power: | 4.37kw |
|---|---|---|---|
| Function: | Multifunctional | Raw Material: | Wheat, Wheat Flour |
| Application Fields: | Snack Food Factory, Beverage Factory | Automatic: | Full-automatic |
| LPG Consumption: | 10-12kg/h | Material: | Stainless Steel |
| Application: | Ice Cream Cone Production Line, Ice Cream | Feature: | Energy Saving |
| High Light: | Industrial Automatic Ice Cream Cone Machine,Automatic Ice Cream Cone Production Line,7500pcs/H Automatic Ice Cream Cone Machine |
||

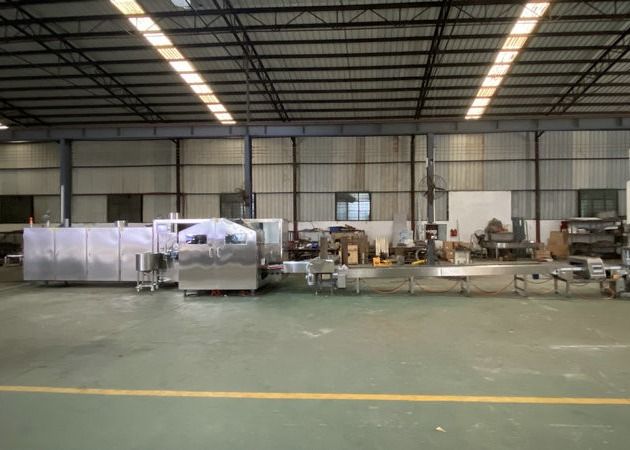

Stainless Steel 7500pcs/H Automatic Ice Cream Cone Machine
Automatic Ice Cream Cone Machine Introduction:
Automatic Ice Cream Cone Machine is a kind of machine which controlled by PLD,with complete automatization ,high capacity and stable performance.It is very popular all over the world.
Automatic Ice Cream Cone Machine Advantage
1. Easy Operation
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
5. High-efficient heating element ensures ideal production ability.
Automatic Ice Cream Cone Machine Application
The machine is drive by the 3phase power and the baking oven is heating with gas(natural gas and liquid gas). The producing ability is very high and it is all automatic from spaying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
|
Model |
Input power |
Dimension |
weight |
Liquefied petroleum gas(LPG) |
Baking plate quantity/machine |
Product |
Outputhour(pcs/h) |
|
SD80-37x2 |
3.37W |
7.6x2.1x1.8 |
4500 |
6 |
37 |
Length below 125 |
3500-4000 |
|
SD80-37 |
3.37W |
7.6x2.1x1.8 |
4500 |
6 |
37 |
Length below 165 |
2500-3000 |
|
SD80-45x2 |
3.37W |
8.7x2.1x1.8 |
5000 |
7 |
45 |
Length below 125 |
4000-5000 |
|
SD80-45A |
3.37W |
8.7x2.1x1.8 |
5000 |
7 |
45 |
Length below 165 |
2500-3000 |
|
SD80-53x2 |
3.37W |
9.8x2.1x1.8 |
5500 |
8 |
53 |
Length below 125 |
5000-6000 |
|
SD80-53A |
3.37W |
9.8x2.1x1.8 |
5500 |
8 |
53 |
Length below 165 |
3000-3500 |
|
SD80-61x2 |
4.07W |
11x2.1x1.8 |
6500 |
10 |
61 |
Length below 125 |
6000-7000 |
|
SD80-61A |
4.07W |
11x2.1x1.8 |
6500 |
10 |
61 |
Length below 165 |
3500-4000 |
|
SD80-69x2 |
4.37W |
12.5x2.1x1.8 |
7300 |
11 |
69 |
Length below 125 |
7000-7500 |
|
SD80-69A |
4.37W |
12.5x2.1x1.8 |
7300 |
11 |
69 |
Length below 165 |
4000-4500 |
Standard equipment:
1, conveyor
Voltage:220V
Power:0.75kw
Dimension: 5mx0.6mx0.7m
It is used to deliver the finished products to the assembly shop in a neat line.
2, optional equipment : automatic counting machine
Power: 0.75kw
Dimension: 2mx0.9mx0.7m
It is used to automatically stack the molded products of the paper sleeve into a string, and wait for the box according to the set number. The set value is 1-50/string.
