| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | 75000pcs/h Rolled Sugar Cone Machine | Model Number: | SD80-69x2 |
|---|---|---|---|
| Capacity: | 4000 - 75000pcs/h | Voltage: | 380V/50HZ |
| Power(W): | 4.37 Kw | Material: | Stainless Steel |
| Raw Material: | Wheat Flour | Function: | Multifunctional |
| Feature: | Energy Saving | Application: | Food & Beverage Factory |
| High Light: | Automatic Sugar Cone production line,75000pcs/h Sugar Cone production line,4.37 kw Rolled Sugar Cone Machine |
||

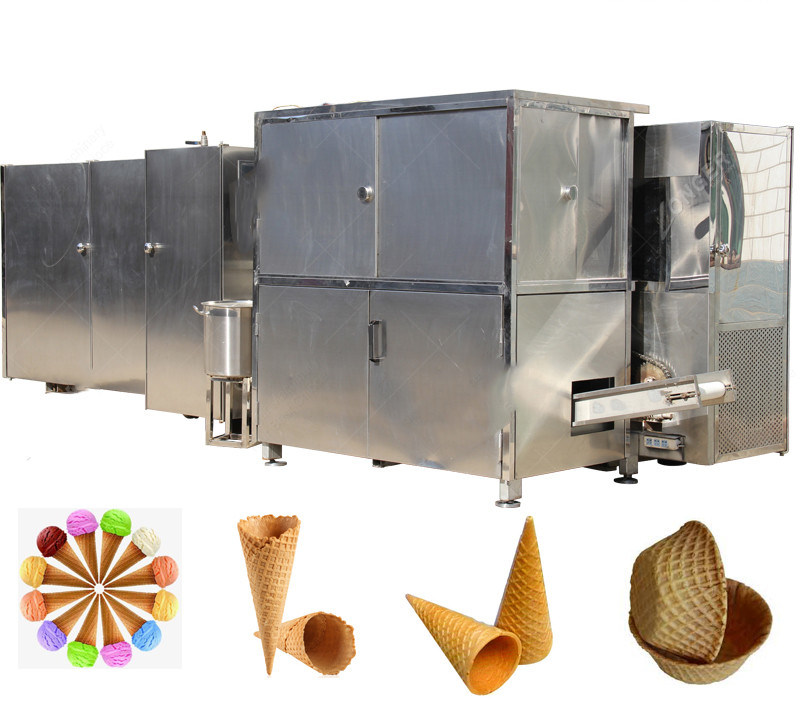

75000pcs/H Beverage Factory Automatic Sugar Cone Production Line
Description of Rolled Sugar Cone Machine
Automatic Rolled Sugar Cone Machine is fully automatic to make ice cream sugar cone with high quality. Automatic Rolled Sugar Cone Production Line can make sugar rolled cone,egg roll,round thin biscuit,wafer biscuit and bowl-shaped cup.We can design the different baking machines to make different types of sugar rolled cones as required by clients.
This Rolled Sugar Cone Machine can produce different shapes of Sugar Cone, just tell us your requirement, we can customize according to your requirement. Compared with other kind of ice cream cone machine, this machine costs less gas consumption. The size and length of cone can be customized, high production capacity, low investment, high profit.
Structure: The spare parts of machine are installed on the strong steel structures. The doors are double for heat insu-lation. All the panels are made with stainless steel.
Equipment performance: This baking equipment is rotating continuously and automatically. The speed can be adjusted as required. The machine is driven by one motor with direct traction.
Main Feature
Different production capacity can be customized, high automation, stable performance.
The automatic Rolled Sugar Cone Machine is driven by the 3phase power and the baking oven is heating with gas (nature gas or liquid gas). The producing ability is very high and it is all automatic from spaying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
Application
This product line is used to produce ice cream cone, size of ice cream cone can be customzied.
| Model | Input power | Dimension | weight | Liquefied petroleum gas(LPG) the biggest consumption (kgh) |
Baking plate quantity/machine | Product size(mm) |
Outputhour(pcs/h) |
| SD80-37x2 | 3.37KW | 7.6x2.1x1.8 | 4500 | 6 | 37 | Length below 125 | 3500-4000 |
| SD80-37 | 3.37KW | 7.6x2.1x1.8 | 4500 | 6 | 37 | Length below 165 | 2500-3000 |
| SD80-45x2 | 3.37KW | 8.7x2.1x1.8 | 5000 | 7 | 45 | Length below 125 | 4000-5000 |
| SD80-45A | 3.37KW | 8.7x2.1x1.8 | 5000 | 7 | 45 | Length below 165 | 2500-3000 |
| SD80-53x2 | 3.37KW | 9.8x2.1x1.8 | 5500 | 8 | 53 | Length below 125 | 5000-6000 |
| SD80-53A | 3.37KW | 9.8x2.1x1.8 | 5500 | 8 | 53 | Length below 165 | 3000-3500 |
| SD80-61x2 | 4.07KW | 11x2.1x1.8 | 6500 | 10 | 61 | Length below 125 | 6000-7000 |
| SD80-61A | 4.07KW | 11x2.1x1.8 | 6500 | 10 | 61 | Length below 165 | 3500-4000 |
| SD80-69x2 | 4.37KW | 12.5x2.1x1.8 | 7300 | 11 | 69 | Length below 125 | 7000-7500 |
| SD80-69A | 4.37KW | 12.5x2.1x1.8 | 7300 | 11 | 69 | Length below 165 | 4000-4500 |
