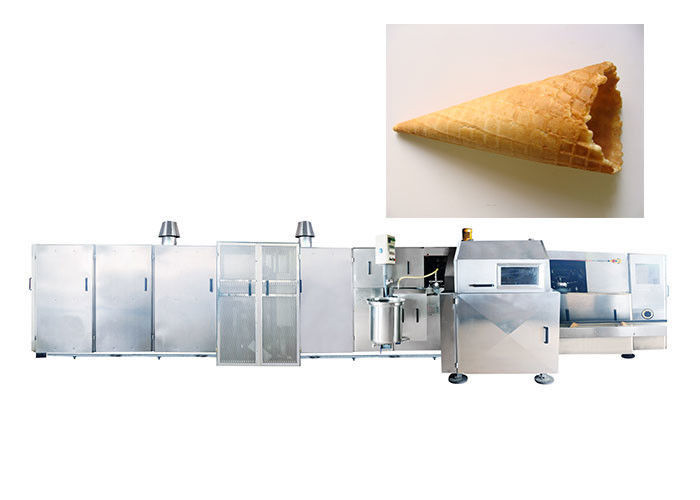

Name: Automatic Snack Food Factory Rolled Sugar Cone Machine
Brand: OEM

Automatic Snack Food Factory Rolled Sugar Cone Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM
Certification:	ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1PS
Price:	Negotiation
Packaging Details:	RAW PACK
Delivery Time:	30-45 days
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Sufficient Supply

Contact Now

Detailed Product Description

Name:	Industrial Rolled Sugar Cone Machine	Power(W):	4.37 Kw
Weight:	4500kg	Material:	Stainless Steel
Capacity:	7500 Pcs/h	Dimension(LWH):	12.5x2.1x1.8
Feature:	Energy Saving , Multifunctional	Voltage:	380V/50HZ
Application Fields:	Snack Food Factory	Color:	Silvery
High Light:	Automatic Rolled Sugar Cone Machine , Commercial Rolled Sugar Cone Machine , 380V Rolled Sugar Cone Machine

Automatic Snack food factory Rolled Sugar Cone Machine

Features

1. The machine is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.

2. The machine is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.

3. The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
4. Full automatic filling paste, baking, rolling and conveying-cooling-counting.
5. The same machine can make different products within round biscuit, sugar rolled cone, egg roll with changing the different forming devices.
6. Different size, angle, thickness, depth ice cream cone can be customized.
7. Electric heating and gas heating can be choose

Model	Input power	Dimension	weight	Liquefied petroleum gas(LPG) the biggest consumption (kgh)	Baking plate quantity/machine	Product size(mm)	Outputhour(pcs/h)
SD80-37x2	3.37KW	7.6x2.1x1.8	4500	6	37	Length below 125	3500-4000
SD80-37	3.37KW	7.6x2.1x1.8	4500	6	37	Length below 165	2500-3000
SD80-45x2	3.37KW	8.7x2.1x1.8	5000	7	45	Length below 125	4000-5000
SD80-45A	3.37KW	8.7x2.1x1.8	5000	7	45	Length below 165	2500-3000
SD80-53x2	3.37KW	9.8x2.1x1.8	5500	8	53	Length below 125	5000-6000
SD80-53A	3.37KW	9.8x2.1x1.8	5500	8	53	Length below 165	3000-3500
SD80-61x2	4.07KW	11x2.1x1.8	6500	10	61	Length below 125	6000-7000
SD80-61A	4.07KW	11x2.1x1.8	6500	10	61	Length below 165	3500-4000
SD80-69x2	4.37KW	12.5x2.1x1.8	7300	11	69	Length below 125	7000-7500
SD80-69A	4.37KW	12.5x2.1x1.8	7300	11	69	Length below 165	4000-4500
