| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Automatic Automatic Sugar Cone Production Line | Material: | Food Grade Stainless Steel |
|---|---|---|---|
| Voltage: | 380V | Dimension(L*W*H): | 9000*1900*1850 Mm |
| Function: | Multifunctional | Raw Material: | Wheat Flour |
| Weight: | 5300kgs | Type: | Fully Automatic |
| Capacity: | 5500-6000pcs/h | Application: | Food & Beverage Factory |
| High Light: | Automatic Sugar Cone Production Line,Industrial Rolled Sugar Cone Machine,6000 pcs/h Sugar Cone Production Line |
||

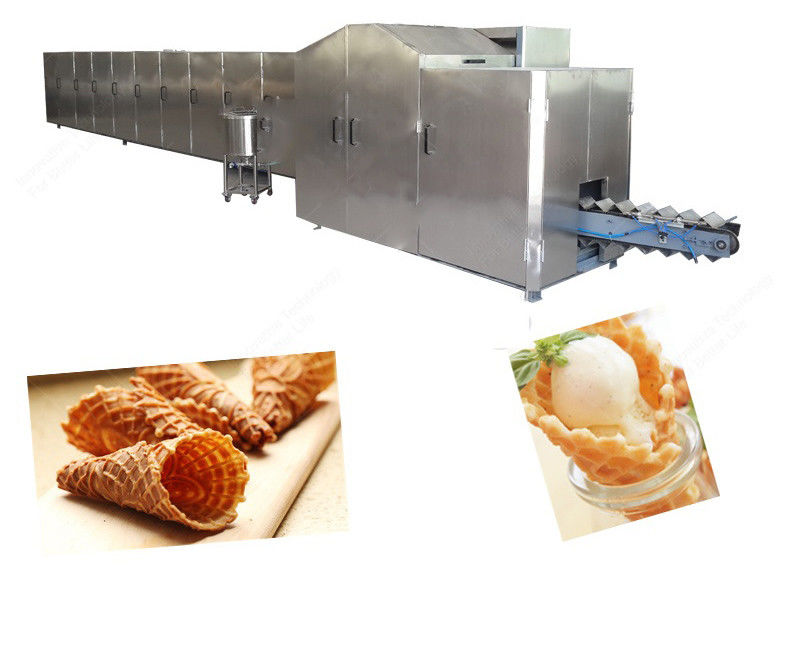

Stainless Steel Industrial Automatic Rolled Sugar Cone Machine
Introduction
1. We produce many kinds of Automatic Rolled Sugar Cone Machine ,such as semi-automatic cone machine,automatic cone machines and ice cream cone production line.
2. The machine is driven by the 3phase power and baking oven is heating with gas(natural gas or liquid gas).The producing ability is very high and it is all automatic from spraying the batter,baking,forming,falling off from molds,conveying products,stacking and counting.
Features
1. The machine is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.
2. The machine is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.
3. The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
| Model | GG37×2-16A | GG45×2-16A | GG53×2-16A |
| Drive motor | 380V 1.5KW | 380V 1.5KW | 380V 2.2KW |
| Rolling system motor | 380V 0.37KW | 380V 0.37KW | 380V 0.37KW |
| Air blower | 380V 1.1KW | 380V 1.1KW | 380V 1.6KW |
| Gas consumption(kg/h) | 5-7 | 6-7 | 8-12 |
| Producing capacity(pcs/h) | 3500-4000 | 4500-5000 | 5500-6000 |
| Food-grade conveyor | 5000*460*500 | 5000*460*500 | 5000*460*500 |
| Automatic counter | 3000*460*400 | 3000*460*400 | 3000*460*400 |
| Mixer | 190L | 190L | 190L |
| Machine measurement (m) | 7.05×1.90×1.73 | 8.52×1.90×1.73 | 9.80×1.90×1.73 |
| Total weight | 4200kgs | 4800kgs | 5300kgs |
