| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Ice Cream Cone Wafer Biscuit Machine | Power(W): | 3370 |
|---|---|---|---|
| Weight: | 5000kg | Raw Material: | Milk, Corn, Wheat, Water, Soybean, Flour |
| Dimension(L*W*H): | 8700*2100*1800mm | Cone Size(mm): | Length Below 125/165 Mm |
| Capacity(pcs/h): | 3000-4000 Pcs | ||
| High Light: | Stainless Steel Ice Cream Cone Making Machine,3370W Ice Cream Cone Production Line,4000 pcs/h Ice Cream Cone Production Line |
||

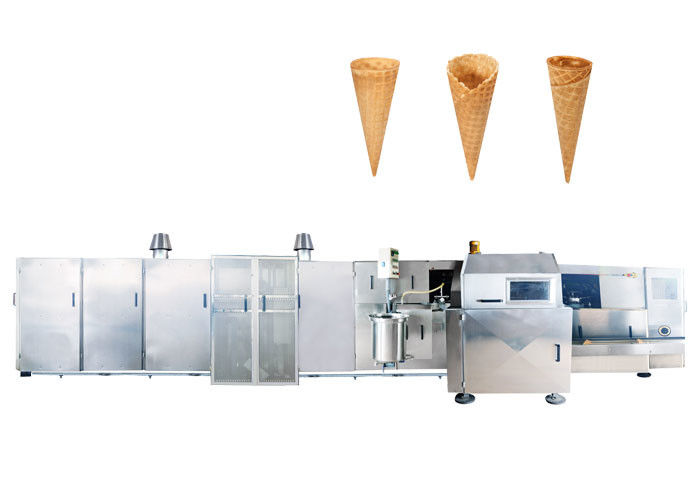

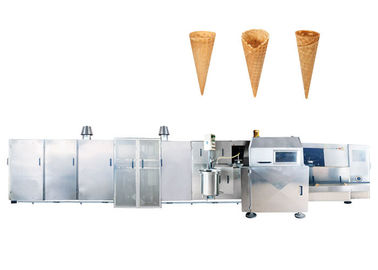

Fully Automatic Stainless Steel Ice Cream Cone Production Line
Main Features
1. Our baking machine can be custom- made to suit your product of different specifications.
2. Our baking machine can produce different products like waffle, egg roil, sugar cone etc. By choosing different mould.
3. Large producing capacity suitable for batch and big output.
Product Application
The machine is drive by the 3phase power and the baking oven is heating with gas(natural gas and liquid gas). The producing ability is very high and it is all automatic from spaying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
Parameter of ice cream cone production line:
|
Model |
GG37*2-16A |
GG45*2-16A |
GG53*2-16A |
|
Drive motor |
380V 1.5KW |
380V 1.5KW |
380V 2.2KW |
|
Rolling system motor |
380V 0.37KW |
380V 0.37KW |
380V 0.37KW |
|
Air blower |
380V 1.1KW |
380V 1.1KW |
380V 1.6KW |
|
Gas consumption(kg/h) |
5-7 |
6-7 |
8-12 |
|
Producing capacity(pcs/h) |
3500-4000 |
4500-5000 |
5500-6000 |
|
Food-grade conveyor |
5000*460*500 |
5000*460*500 |
5000*460*500 |
|
Automatic counter |
3000*460*400 |
3000*460*400 |
3000*460*400 |
|
Mixer |
190L |
190L |
190L |
|
Machine measurement (m) |
7.05*1.90*1.73 |
8.52*1.90*1.73 |
9.80*1.90*1.73 |
|
Total weight |
4200kgs |
4800kgs |
5300kgs |
