| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Ice Cream Cone Making Machine | Material: | Stainless Steel |
|---|---|---|---|
| Machine Dimension(mm): | 3000*460*400mm | Voltage: | 380V |
| Power(W): | 1.5KW | Type: | Fully Automatic |
| Weight: | 4200kgs | Applicable: | Food & Beverage Factory, Restaurant, Food Shop |
| High Light: | Crispy ice Cream Cone Wafer Production Line,Food Shop Ice Cream Cone Production Line,4200kgs Ice Cream Cone Production Line |
||

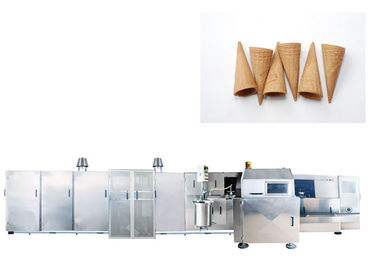

Beverage Factory Crispy ice Cream Cone Wafer Production Line
Introduction:
The Crispy Ice Cream Cone Production Line is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas),electric ignition, oven temperature electronic display. The Automatic Ice Cream Cone Machine producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
Feature:
1. The commercial Crispy Ice Cream Cone Production Line is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.
2. The Crispy ice cream cone machines in china is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.
Parameter
|
Model |
GG37*2-16A |
GG45*2-16A |
GG53*2-16A |
|
Drive motor |
380V 1.5KW |
380V 1.5KW |
380V 2.2KW |
|
Rolling system motor |
380V 0.37KW |
380V 0.37KW |
380V 0.37KW |
|
Air blower |
380V 1.1KW |
380V 1.1KW |
380V 1.6KW |
|
Gas consumption(kg/h) |
5-7 |
6-7 |
8-12 |
|
Producing capacity(pcs/h) |
3500-4000 |
4500-5000 |
5500-6000 |
|
Food-grade conveyor |
5000*460*500 |
5000*460*500 |
5000*460*500 |
|
Automatic counter |
3000*460*400 |
3000*460*400 |
3000*460*400 |
|
Mixer |
190L |
190L |
190L |
|
Machine measurement (m) |
7.05*1.90*1.73 |
8.52*1.90*1.73 |
9.80*1.90*1.73 |
|
Total weight |
4200kgs |
4800kgs |
5300kgs |
Double Layered Panel Door. Hot air escapes from door top cold air move in from door bottom. Air inside door become heat insulator. It reduces heat loss from the oven, saving energy and keeping the panel cool.
Gas system. Auto ignition system is installed. Special design nozzle to give clear blue flames and increase energy efficiency. Universal burner allow LPG, natural gas and some other type fuel.
Batter Tank and Pump System. Double walled to keep batter temperature stable. Steel sieve included. Backflow valve stop batter to release from doser while adjustable doser help control the wafer size.
The machines have characteristics with energy-saving, safety, sanitation, high capacity and easy operation. Meanwhile, we can design and make different models according to the requirements from different customers.
