| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Features: | High Productivity | Name: | 380V Ice Cream Cone Production Line |
|---|---|---|---|
| Type: | Fully Automatic | Voltage: | 380V |
| Power(W): | 1.5kw | Weight: | 5100kg |
| Machine Dimension(mm): | 1080*800*1440mm | Gas Consumption(kg)/hour: | 10-11 |
| Material: | Food Grade Stainless Steel | Application: | Rolled Sugar Cone |
| High Light: | 380V Ice Cream Manufacturing Equipment,Automatic Ice Cream Cone Production Line,1.5kw Ice Cream Cone Making Machine |
||

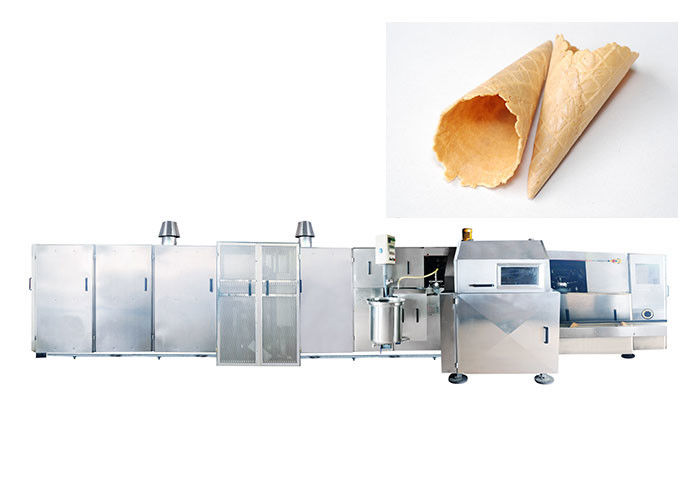

Stainless Steel Fully Automatic Ice Cream Cone Production Line
Product Description
Automatic Ice Cream Cone Production Line is fully automatic to make ice cream sugar cone with high quality. Automatic Ice Cream Cone Production Line can make sugar rolled cone, egg roll, round thin biscuit, wafer biscuit and bowl-shaped cup. We can design the different baking machines to make different types of sugar rolled cones as required by clients.
Features :
1. Dough thickness can be adjusted
2. Easy to dismantle and Easy to wash
3. Simple operation
4. High-power motor, large output, high efficiency
5. Save time and effort
Parameter
| Model | GG-37 | GG-45 | GG-55 | GG-65 | GG-75 |
| Capacity | 3000-3500pcs/h | 3500-4000pcs/h | 4500-5000pcs/h | 5500-6250pcs/h | 7000-7500pcs/h |
| Power | 2.2KW, 380V 50Hz 3phase | 3KW, 380V 50Hz 3phase | |||
| Gas consumption | 140cube/24hours | 160cube/24hours | 200cube/24hours | 240cube/24hours | 280cube/24hours |
| Dimension | 6.5*1.8*1.75m | 8*1.85*1.8m | 9*1.9*1.85m | 10*1.9*1.85 | 11*1.9*1.85m |
| Total weight | 4200kg | 4700kg | 5100kg | 6000kg | 7100kg |
Double Layered Panel Door. Hot air escapes from door top cold air move in from door bottom. Air inside door become heat insulator. It reduces heat loss from the oven, saving energy and keeping the panel cool.
Gas system. Auto ignition system is installed. Special design nozzle to give clear blue flames and increase
energy efficiency. Universal burner allow LPG, natural gas and some other type fuel.
Batter Tank and Pump System. Double walled to keep batter temperature stable. Steel sieve included. Backflow
valve stop batter to release from doser while adjustable doser help control the wafer size.
The machines have characteristics with energy-saving, safety, sanitation, high capacity and easy operation.
Meanwhile, we can design and make different models according to the requirements from different customers.
