| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Snack Food Industry Ice Cream Cone Rolling Machine | Raw Material: | Milk, Wheat, Water, Flour |
|---|---|---|---|
| Dimension: | L3.2xW2.7xH2.1M | Voltage: | 380V |
| Input Power: | 1.5kw | Gas Consumption: | 4Kg/h (4.2m³/h) |
| Compressed Air Pressure: | 0.6MPa | Net Weight: | 3000Kg |
| Color: | Silver | Application: | Snack Industry Equipment |
| High Light: | 2500pcs/h Ice Cream Cone Rolling Machine,Food Industry Ice Cream Cone Rolling Machine,380V Ice Ice Cream Cone Production Line |
||

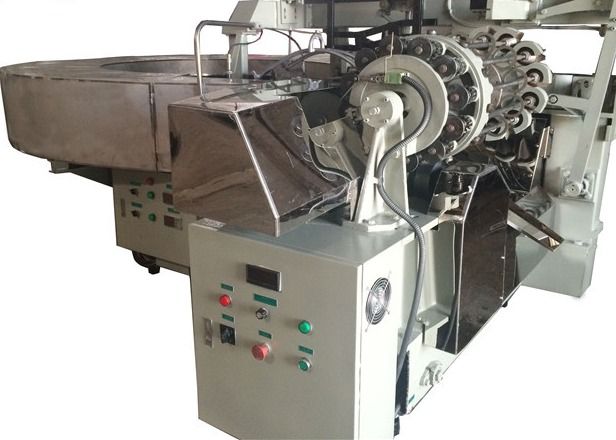

2500pcs/H Industrial Ice Cream Cone Rolling Machine
The machine is fully automatic to make ice cream sugar cone with high quality.The machine can make sugar rolled cone,egg roll,round thin biscuit,wafer biscuit and bowl-shaped cup.We can design the different baking machines to make different types of sugar rolled cones as required by clients.
TT25 series machine is used for rolling sugar cones.
It offers cones to the next process to be filled with ice cream. First it dispenses batter on the baking plates to prepare the wafers for shaping, and then rolls them up, keep them in shape unload them finally. It is the main device of the production line. Excellent performances have allowed Intentional Standards to be comfortably met.
Product Parameters :
| Model | TT25-40 | |
| Voltage | 380V | |
| Total Power | 1.5Kw | |
| Gas consumption | 4Kg/h (4.2m³/h) | |
| Compressed air pressure | 0.6MPa | |
| Weight | 3000Kg | |
| Dimension of machine (mm) | 3200*2700*1900 | |
| Product dimension (22.5degree) | Diameter | 46-52mm |
| Length | 115-130mm | |
| Capacity | 2500pieces/h | |
The main features
1. Produced by the crisp and delicious products, uniform color.
2. Heating temperature automatically adjusts, uses the thermostat, the temperature control is accurate.
3. Automatic feeding, adjustable amount of material, and the adjustment is simple.
4. Using a special process, non-stick layer heating plate
5. The overall use of stainless steel frame welded pipe, never rust, easy to clean.
6. Mold can be customized to meet different need.
| Model No. | Gas type | ||||
| TT25 | TT25-40 | TT25-36 | TT25-30 | ||
| Voltage | 380V | 380V | 380V | 380V | |
| Power | 1.5Kw | 1.5Kw | 1.5Kw | 1.5Kw | |
| Gas consumption | 4Kg/h (4.2m³/h) | 4Kg/h (4.2m³/h) | 5Kg/h (5.5m³/h) | 5Kg/h (5.5m³/h) | |
| compressed air pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | |
| Total weight | 3000Kg | 3000Kg | 3000Kg | 3000Kg | |
| Dimension(mm) | 3200x2700x1900 | 3200x2700x1900 | 3200*2700*1900 | 3200x2700x1900 | |
| Cone size(22.5°) | Capacity | 2300-2500pcs/h | 2200-2400pcs/h | 2000-2200pcs/h | 1500-2000pcs/h |
| Cone size(17.5°) | Capacity | 2500pcs/h | / | / | / |
Our Services
♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.
♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.
♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.
After Sale Service
1. Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs rish and choose safest shipping company before shipping.
4. Follow status up time by time until the goods arrived.
