| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Features: | Automatic | Name: | Rolled Sugar Cone Making Machine |
|---|---|---|---|
| VoltagE: | 380V | Dimension: | L3.2xW2.7xH2.1M |
| Input Power: | 1.5kw | Compressed Air Pressure: | 0.6MPa |
| Gas Consumption: | 5kg/h（5.5m³/h） | Power Source: | Gas |
| Application Fields: | Snack Food Factory, Beverage Factory | Output/hour：: | 1500-1800 Pcs/hour |
| High Light: | Snack Food Factory Ice Cream Cone Rolling Machine,Automatic Ice Cream Cone Rolling Machine,380V Ice Cream Cone Rolling Machine |
||

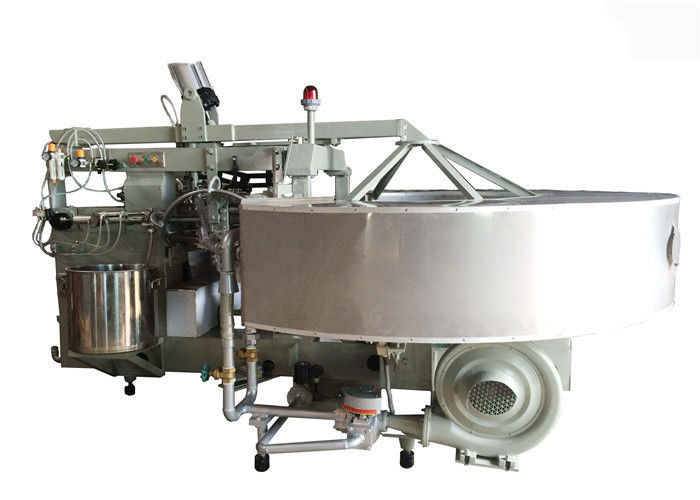

Snack Food Factory Ice Cream Cone Rolling Maker Machine
Ice Cream Cone Rolling Machine is used for rolling sugar cones.
It offers cones to the next process to be filled with ice cream. First it dispenses batter on the baking plates to prepare the wafers for shaping, and then rolls them up, keep them in shape unload them finally. It is the main device of the production line. Excellent performances have allowed Intentional Standards to be comfortably met.
Product Parameters
Voltage:380V
Input power:1.5kw
Liquefied petroleum gas(LPG) the biggest consumption: 5kg/h(5.5m³/h)
Compressed air pressure: 0.6Mpa
Baking plate quantity/machine: 30pcs / machine
Machine dimension: L3.2xW2.7xH2.1M
|
Product dimension (22.5degree) |
Diameter |
56-68mm |
|
Length |
140-165mm |
|
|
Capacity |
1500-1800pieces/h |
|
Model No. |
|
Gas type |
|||
|
|
TT25 |
TT25-40 |
TT25-36 |
TT25-30 |
|
|
Voltage |
|
380V |
380V |
380V |
380V |
|
Power |
|
1.5Kw |
1.5Kw |
1.5Kw |
1.5Kw |
|
Gas consumption |
|
4Kg/h (4.2m³/h) |
4Kg/h (4.2m³/h) |
5Kg/h (5.5m³/h) |
5Kg/h (5.5m³/h) |
|
compressed air pressure |
|
0.6MPa |
0.6MPa |
0.6MPa |
0.6MPa |
|
Total weight |
|
3000Kg |
3000Kg |
3000Kg |
3000Kg |
|
Dimension(mm) |
|
3200x2700x1900 |
3200x2700x1900 |
3200*2700*1900 |
3200x2700x1900 |
|
Cone size(22.5°) |
Capacity |
2300-2500pcs/h |
2200-2400pcs/h |
2000-2200pcs/h |
1500-2000pcs/h |
|
Cone size(17.5°) |
Capacity |
2500pcs/h |
/ |
/ |
/ |
