Place of Origin: | CHINA |
Brand Name: | OEM |
Certification: | ISO |
Minimum Order Quantity: | 1PS |
---|---|
Price: | Negotiation |
Packaging Details: | RAW PACK |
Delivery Time: | 30-45 days |
Payment Terms: | T/T, L/C, T/T, Western Union |
Supply Ability: | Sufficient Supply |
Gas Consumption: | 4.5kg/h(4.8m³/h) | Raw Material: | Milk, Wheat, Water, Flour |
---|---|---|---|
Dimension: | L3.2xW2.7xH2.1M | Input Power: | 1.5kw |
Compressed Air Pressure: | 0.6MPa | Power Source: | Gas |
VoltagE: | 380V | Output/hour:: | 1800-2000 Pcs/hour |
After-sales Service Provided: | Field Installation, Commissioning And Training | ||
High Light: | 2000 pcs/h Ice Cream Cone Making Machine,Rolled Sugar Cone Making Machine,2000pcs/h Ice Cream Cone Rolling Machine |

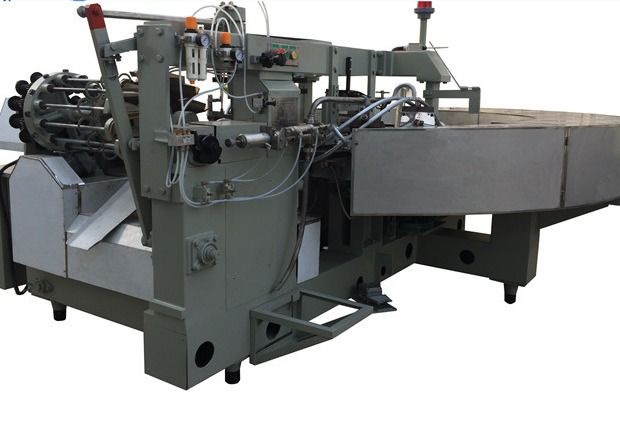

Commercial Automatic Rolled Sugar Cone Making Machine
Automatic Rolled Sugar Cone Making Machine is used for rolling sugar cones.It offer cones to the next process to be filled with ice cream.First it dispenses batter on the baking plates to prepare the wafers for shaping,then rolls them up,keep them in shape unload them finally.
Introduction
The machine is used for rolling sugar cones. It offers cones to the next process to be filled with ice cream. First it dispenses batter on the baking plates to prepare the wafers for shaping, then rolls them up, keep them in shape unload them finally. It is the main device of the production line. Excellent performances have allowed International Standards to be comfortably met.
The main features:
1. Produced by the crisp and delicious products, uniform color.
2. Heating temperature automatically adjusts, uses the thermostat, the temperature control is accurate.
3. Automatic feeding, adjustable amount of material, and the adjustment is simple.
4. Using a special process, non stick layer heating plate
5. The overall use of stainless steel frame welded pipe, never rust, easy to clean.
6. Mold can be customized to meet different need.
Model |
TT25-36 |
|
Voltage |
380V |
|
Total Power |
1.5Kw |
|
Gas consumption |
4Kg/h (4.2m³/h) |
|
Compressed air pressure |
0.6MPa |
|
Weight |
3000Kg |
|
Dimension of machine (mm) |
3200*2700*1900 |
|
Product dimension (22.5degree) |
Diameter |
50-58mm |
Length |
130-145mm |
|
Capacity |
1800-2000pieces/h |
Model No. |
|
Gas type |
|||
|
TT25 |
TT25-40 |
TT25-36 |
TT25-30 |
|
Voltage |
|
380V |
380V |
380V |
380V |
Power |
|
1.5Kw |
1.5Kw |
1.5Kw |
1.5Kw |
Gas consumption |
|
4Kg/h (4.2m³/h) |
4Kg/h (4.2m³/h) |
5Kg/h (5.5m³/h) |
5Kg/h (5.5m³/h) |
compressed air pressure |
|
0.6MPa |
0.6MPa |
0.6MPa |
0.6MPa |
Total weight |
|
3000Kg |
3000Kg |
3000Kg |
3000Kg |
Dimension(mm) |
|
3200x2700x1900 |
3200x2700x1900 |
3200*2700*1900 |
3200x2700x1900 |
Cone size(22.5°) |
Capacity |
2300-2500pcs/h |
2200-2400pcs/h |
2000-2200pcs/h |
1500-2000pcs/h |
Cone size(17.5°) |
Capacity |
2500pcs/h |
/ |
/ |
/ |
