| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Voltage: | 380V | Dimension: | L3.2xW2.7xH2.1M |
|---|---|---|---|
| Input Power: | 1.5kw | Gas Consumption: | 4.5kg/h（4.8m³/h） |
| Raw Material: | Milk, Wheat, Water, Flour | Compressed Air Pressure: | 0.6MPa |
| After-sales Service Provided: | Field Installation, Commissioning And Training | Application: | Snack Food Of Cracker Biscuit, Wafer Bread |
| Warranty: | One Year | Power Source: | Gas |
| High Light: | 2500 pcs/H Ice Cream Cone Production Line,2500 pcs/H Ice Cream Cone Rolling Machine,1.5kw Ice Cream Cone Rolling Machine |
||

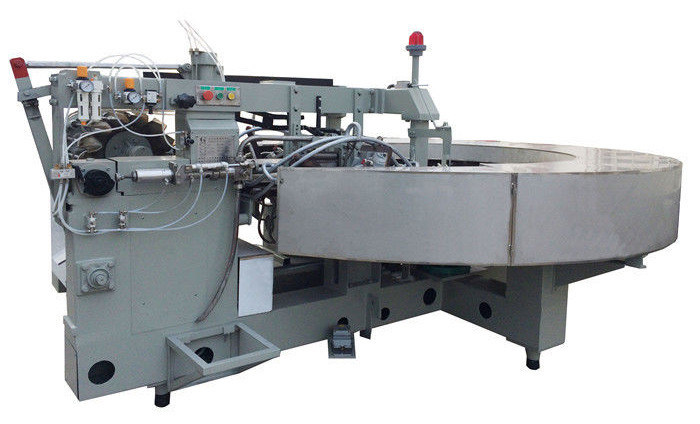

Automatic Feeding 2500pcs/H Ice Cream Cone Rolling Machine
Ice Cream Cone Rolling Machine Introduction
The machine is used for rolling Ice Cream Cone. It offers cones to the next process to be filled with ice cream. First it dispenses batter on the baking plates to prepare the wafers for shaping, then rolls them up, keep them in shape unload them finally. It is the main device of the production line. Excellent performances have allowed International Standards to be comfortably met.
The main Features:
1. Produced by the crisp and delicious products, uniform color.
2. Heating temperature automatically adjusts, uses the thermostat, the temperature control is accurate.
3. Automatic feeding, adjustable amount of material, and the adjustment is simple.
4. Using a special process, non-stick layer heating plate
5. The overall use of stainless steel frame welded pipe, never rust, easy to clean.
6. Mold can be customized to meet different need.
| Model No. | Gas type | ||||
| TT25 | TT25-40 | TT25-36 | TT25-30 | ||
| Voltage | 380V | 380V | 380V | 380V | |
| Power | 1.5Kw | 1.5Kw | 1.5Kw | 1.5Kw | |
| Gas consumption | 4Kg/h (4.2m³/h) | 4Kg/h (4.2m³/h) | 5Kg/h (5.5m³/h) | 5Kg/h (5.5m³/h) | |
| compressed air pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | |
| Total weight | 3000Kg | 3000Kg | 3000Kg | 3000Kg | |
| Dimension(mm) | 3200x2700x1900 | 3200x2700x1900 | 3200*2700*1900 | 3200x2700x1900 | |
| Cone size(22.5°) | Capacity | 2300-2500pcs/h | 2200-2400pcs/h | 2000-2200pcs/h | 1500-2000pcs/h |
| Cone size(17.5°) | Capacity | 2500pcs/h | / | / | / |
Product Parameters
Voltage: 380V
Input power: 1.5kw
Liquefied petroleum gas(LPG) the biggest consumption: 4.5kg/h(4.8m³/h)
Compressed air pressure: 0.6Mpa
Baking plate quantity/machine: 36pcs / machine
Machine dimension: L3.2xW2.7xH2.1M
